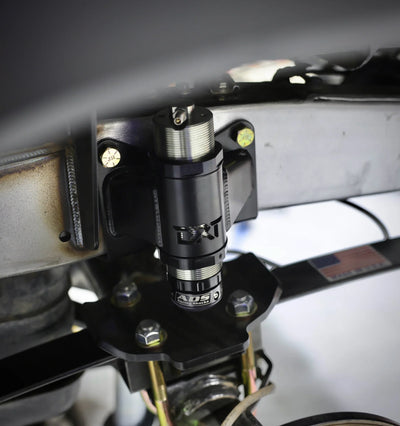

Adjustable Bolt-On Bump Stop Kit for Toyota Tacoma

Upgrade your Tacoma’s suspension with the ultimate adjustable bump stop kit. Engineered to optimize up travel, protect shocks, and handle the toughest off-road conditions.

Why You Need Adjustable Bump Stops

Every aftermarket suspension package is different. Shocks have varying compressed lengths, and leaf springs have different thicknesses. A fixed bump stop won’t account for these differences, which can lead to bottoming out and shock damage.

Our adjustable bump stops let you precisely set bump height to match your suspension setup. The result? Maximum suspension travel, better ride quality, and protection when your suspension is fully compressed.

Key Features

• Fits Jeep threaded bump stops
  • King Part #20001-150

• Direct Bolt-On Installation

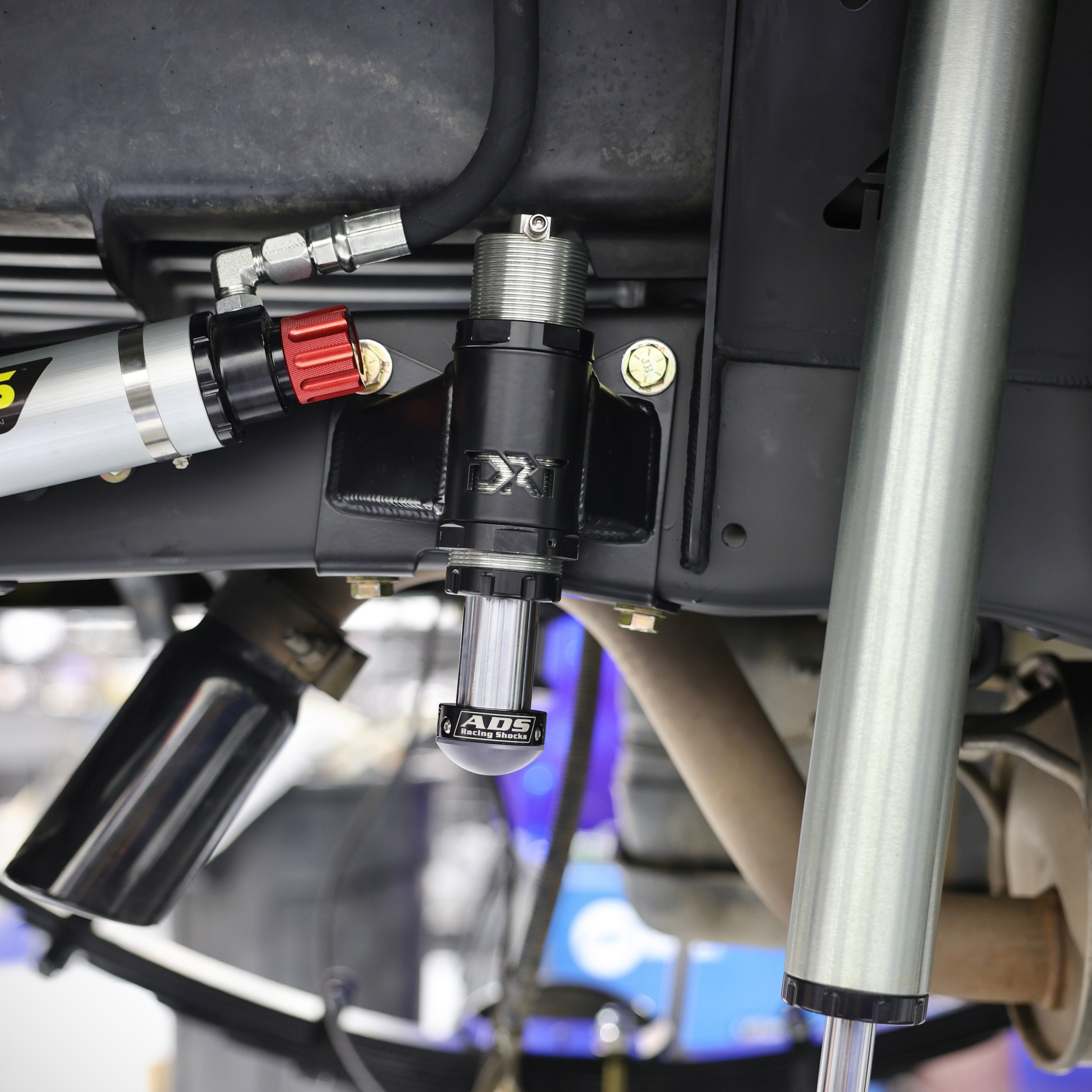

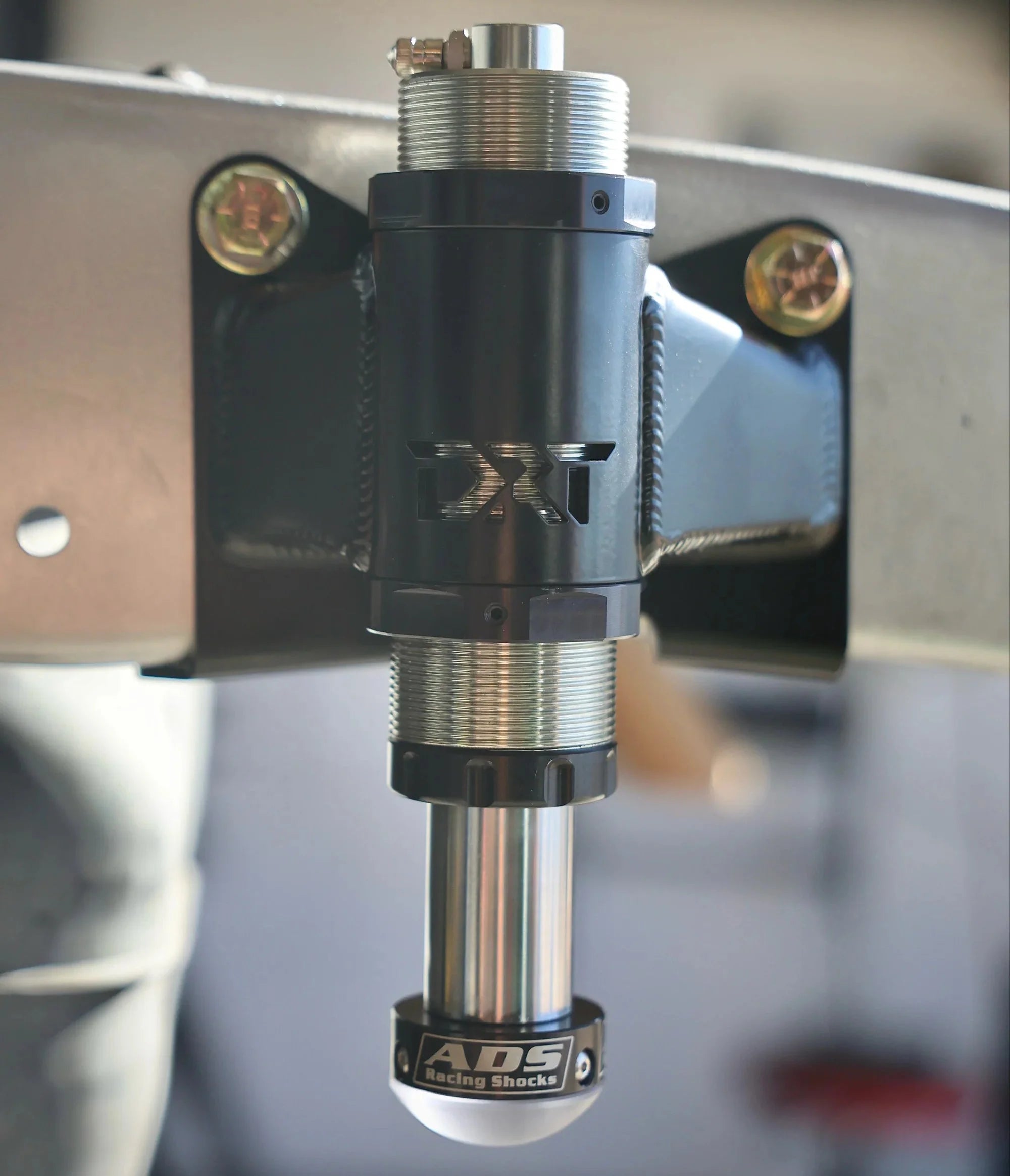

Upper bump stop mounts secure with four ½" Grade 8 bolts per side. No cutting or welding required.

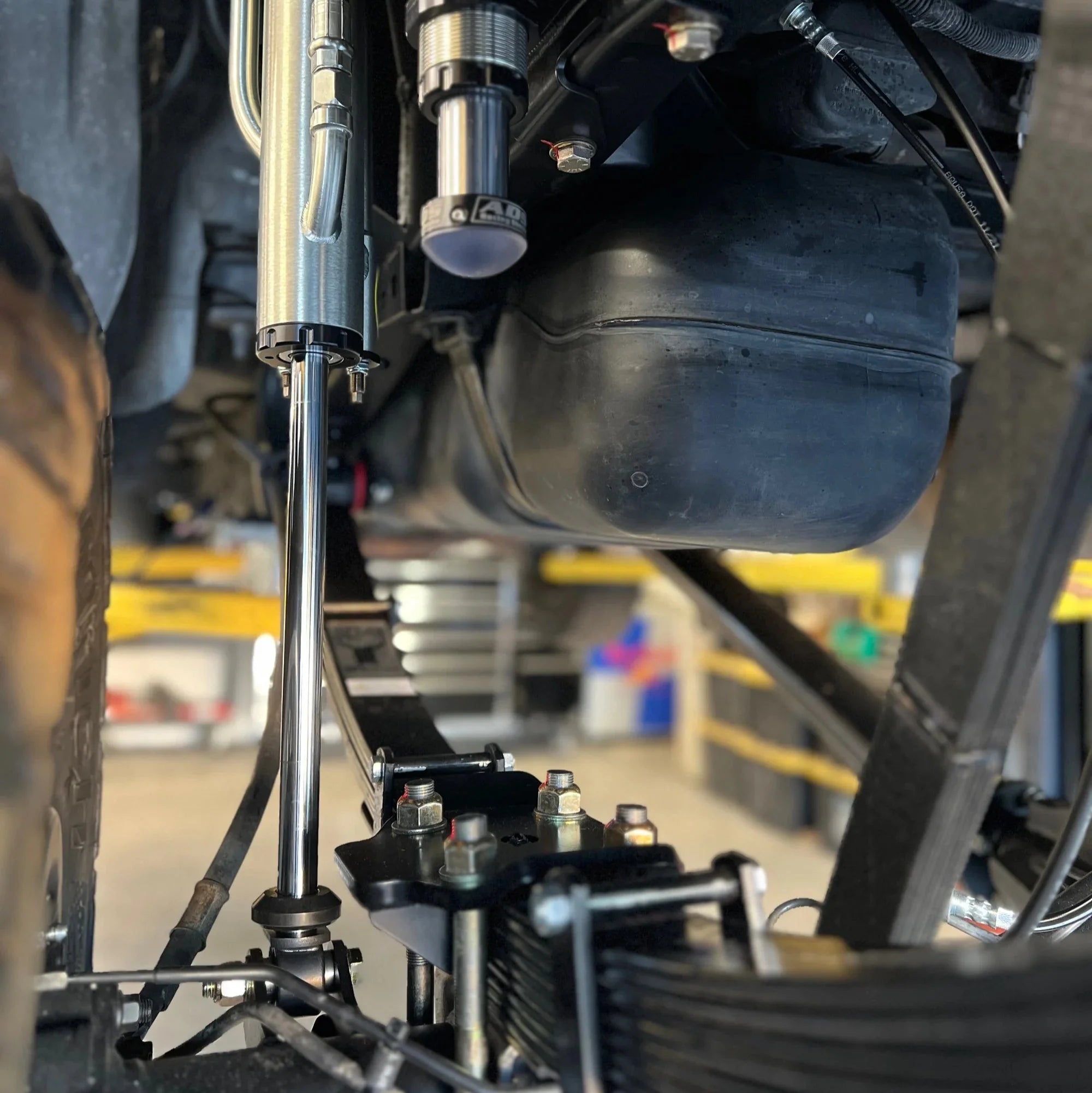

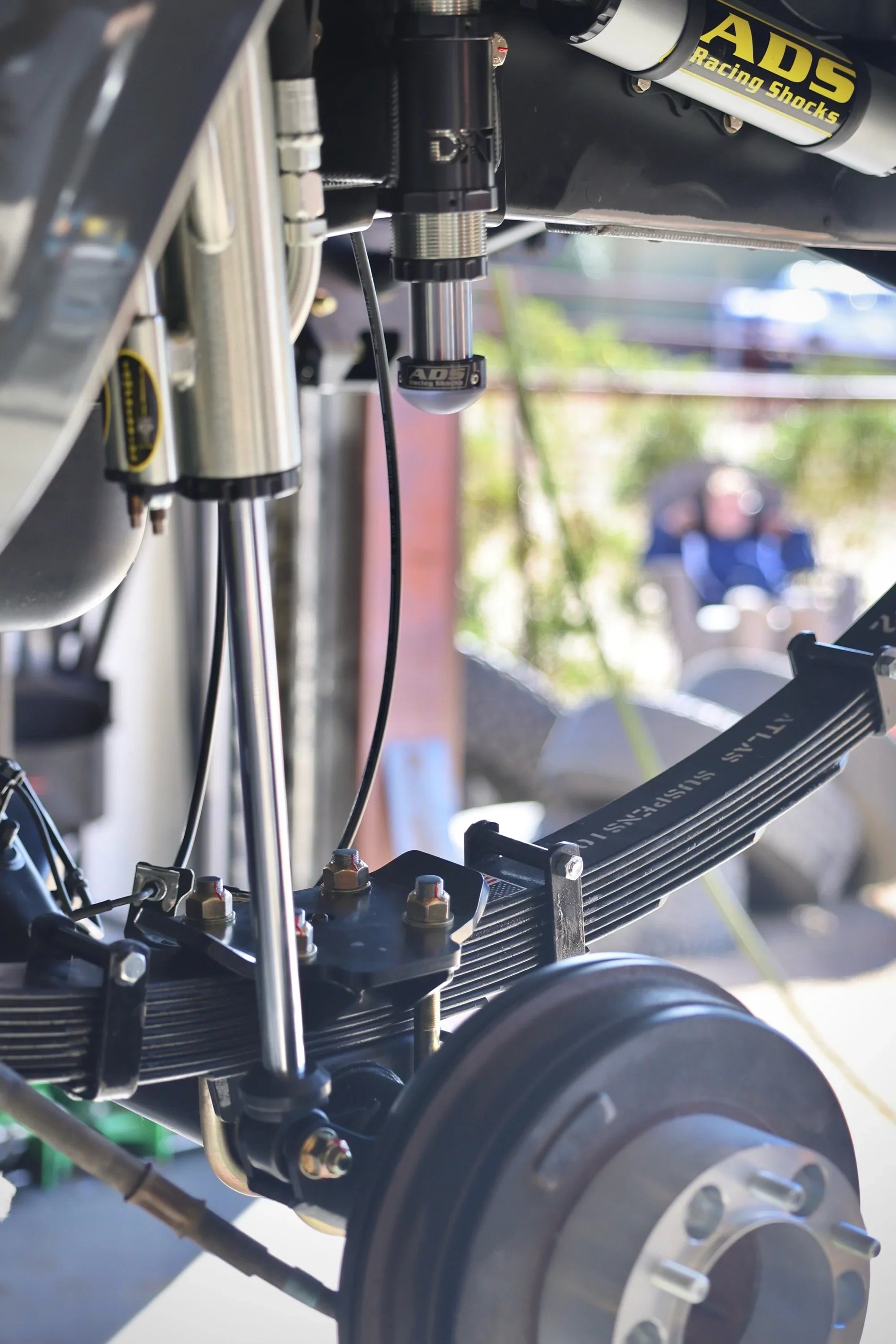

• Heavy-Duty U-Bolt Flip Plates

Built from 3/8" steel with reinforced side supports to spread impact forces and prevent the deformation commonly seen in other kits.

• Stronger U-Bolts

  The only Tacoma U-bolt flip kit using massive Grade 8, ⅝" U-bolts with a proper 3 ⅛" inside diameter for superior clamping strength.

Kit Includes

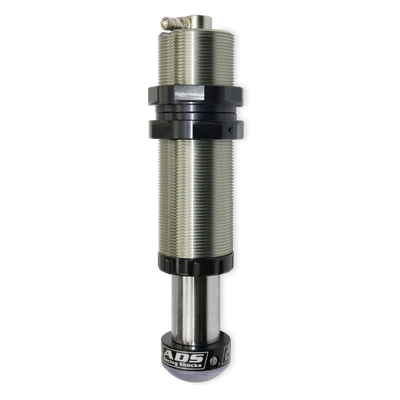

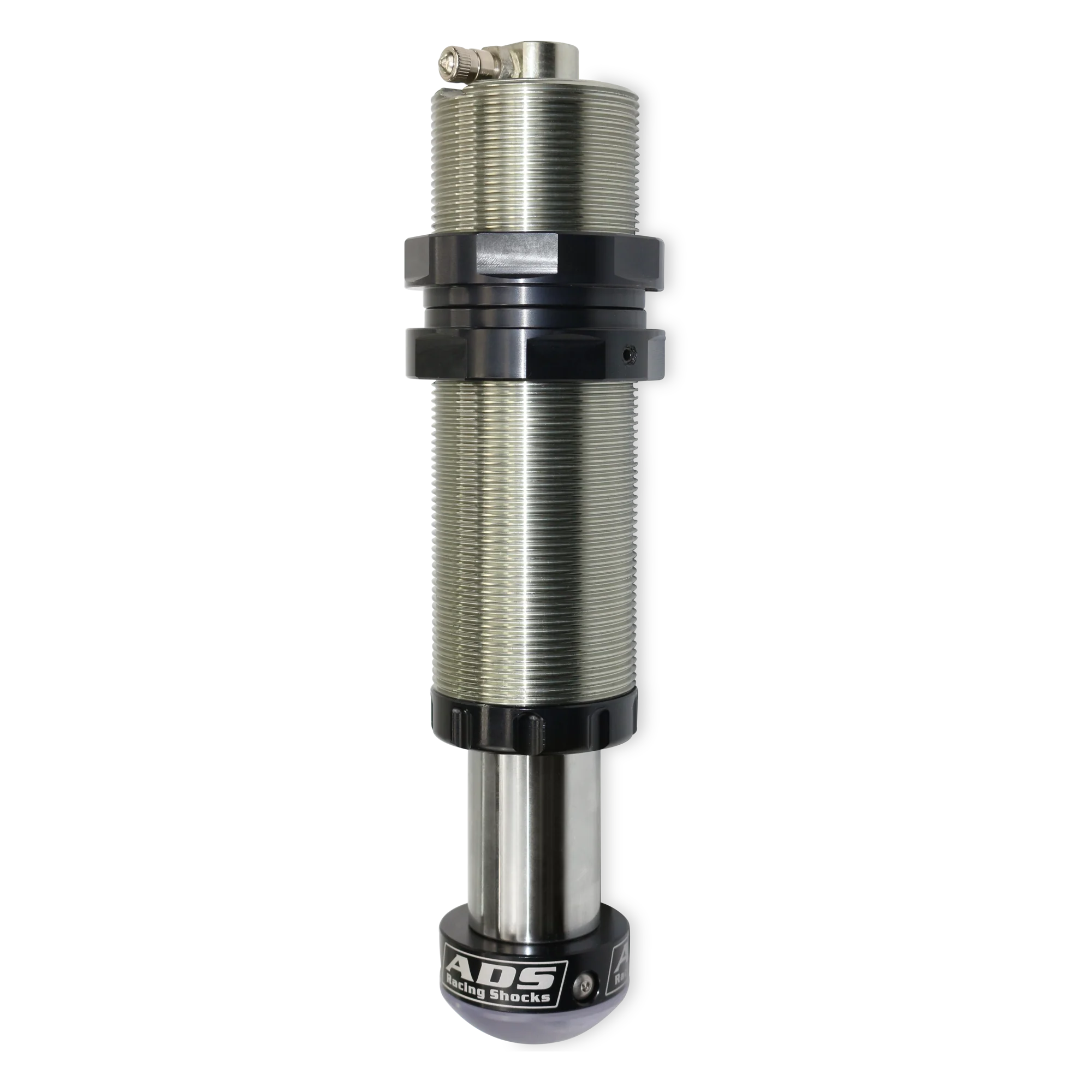

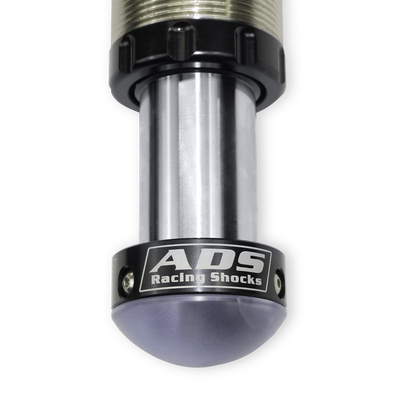

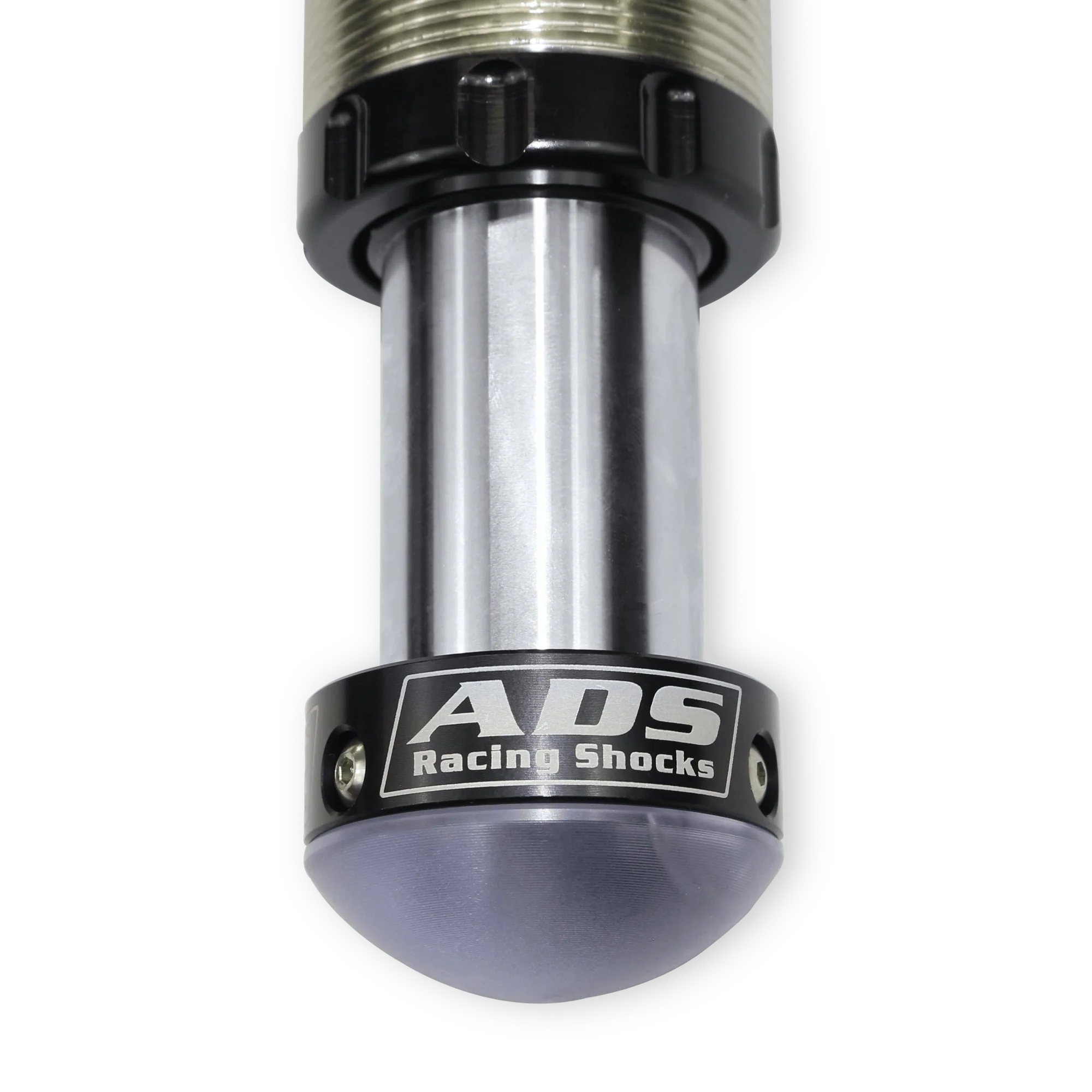

• (2) ADS threaded bump stops(optional)
• (2) Upper bump stop brackets
• (2) 3/8" thick U-bolt flip plates with reinforced side supports
• (4) ⅝" Grade 8 U-bolts with stover lock nuts

This kit delivers unmatched strength and adjustability, making it the best bolt-on bump stop solution for 2005–2023 Toyota Tacoma trucks running aftermarket shocks and leaf springs.

Vehicle Fitment

• 2005-2023 Toyota Tacoma (2nd & 3rd Gen)

Lead Time

Made to order. Contact DRT for current lead time.

Shipping

We offer free shipping to all addresses in the Lower 48 states. For Alaska, Hawaii, and U.S. territories, shipping rates will be calculated and applied at checkout.

Installation

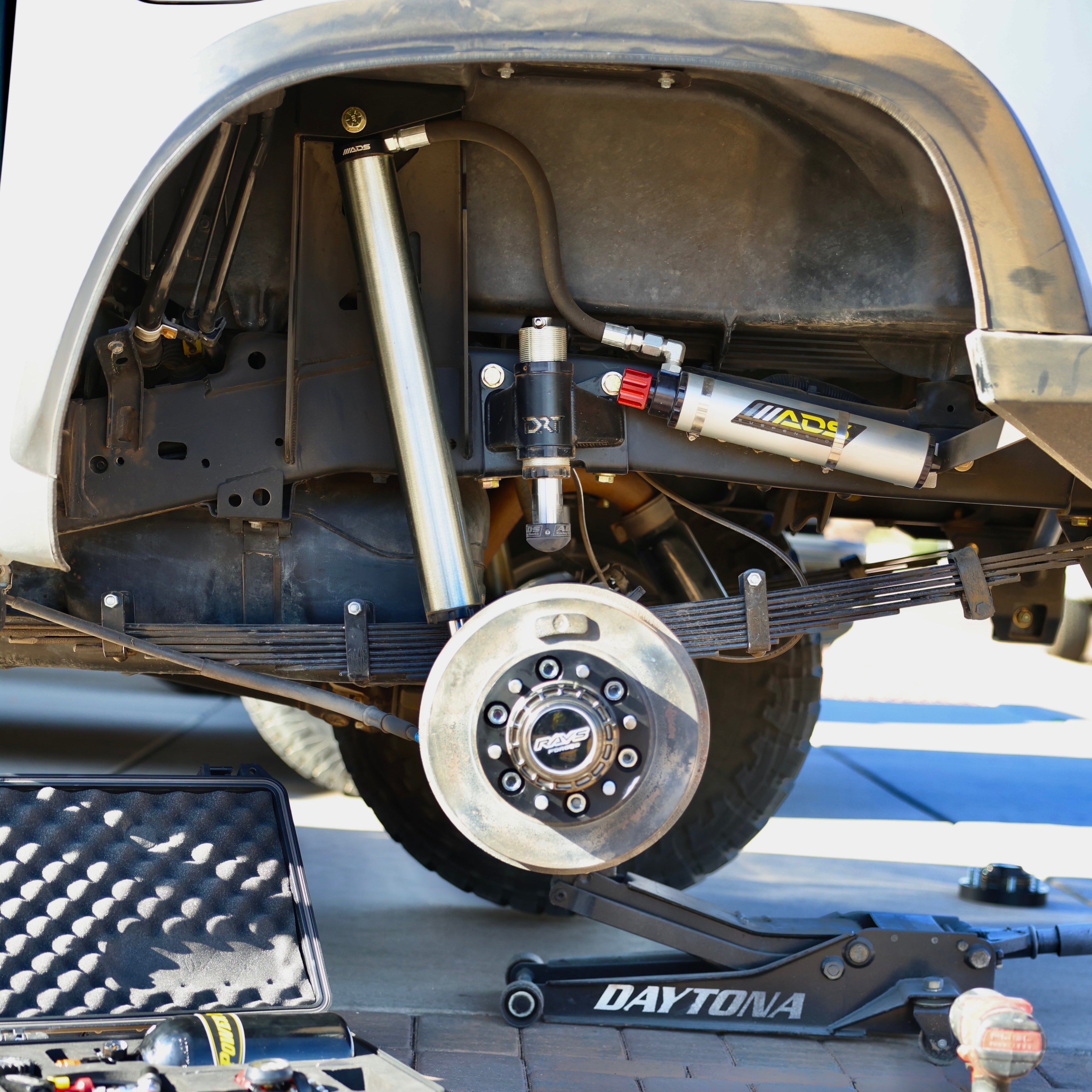

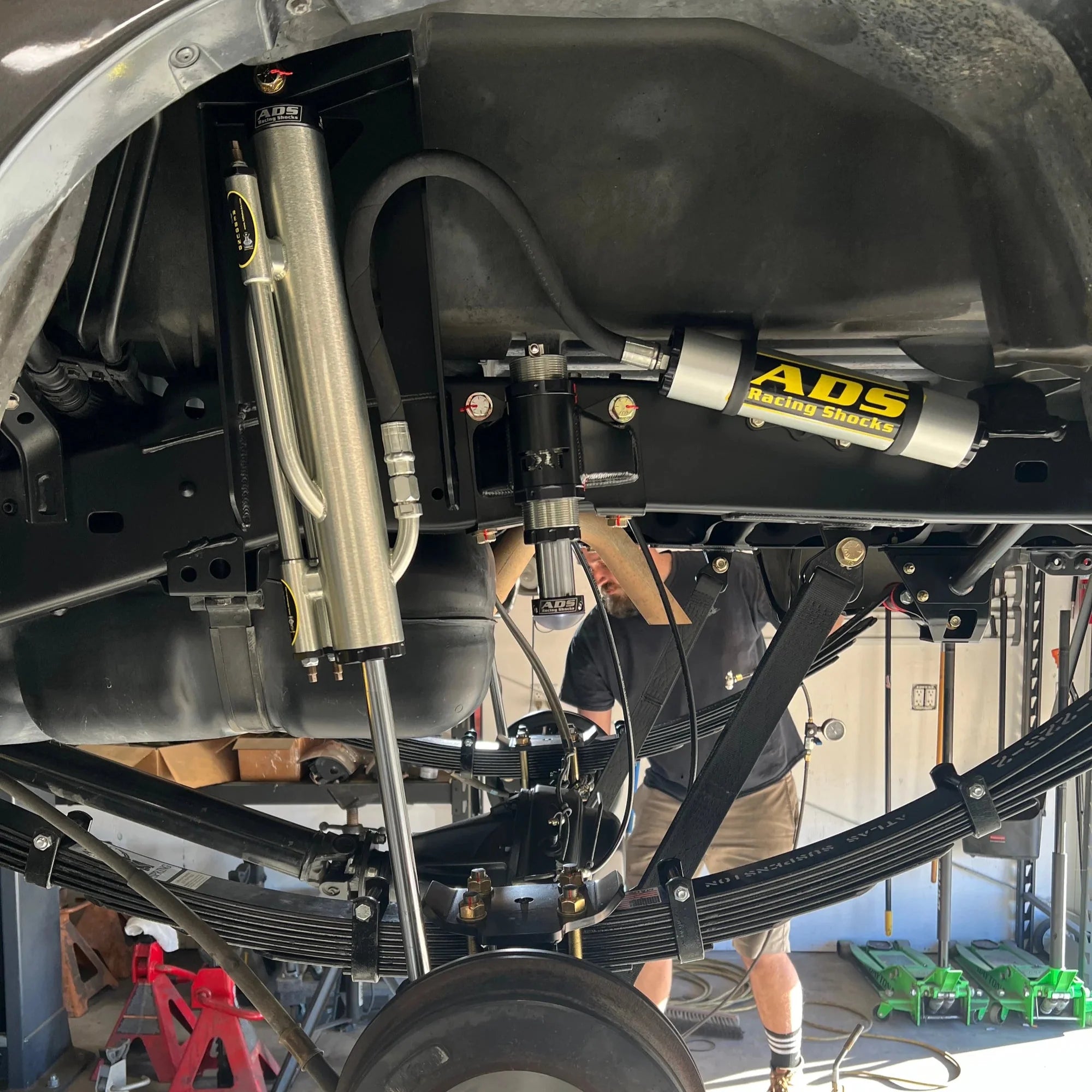

Direct bolt-on installation. No cutting or welding required. Off-road use only.
