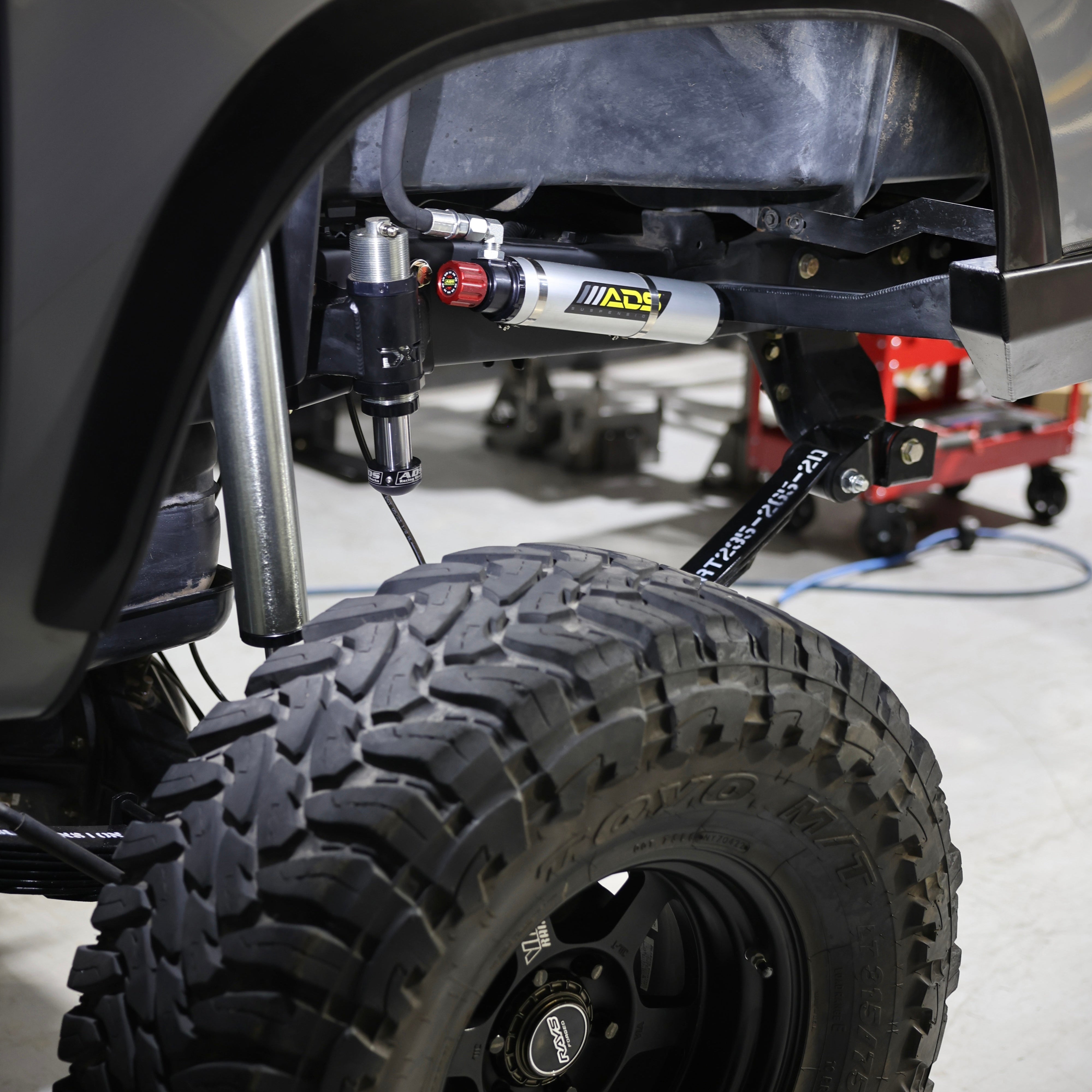

Heavy-Duty Leaf Spring Hangers & Crossbar for 2005+ Toyota Tacoma

The DRT shackle hanger kit, known in the Tacoma community as "hammer hangers," is a heavy-duty leaf spring hanger upgrade for 2005-2023 Toyota Tacoma. It replaces the weak factory hangers and unlocks the full travel of your aftermarket leaf springs.

Version 2 Updates

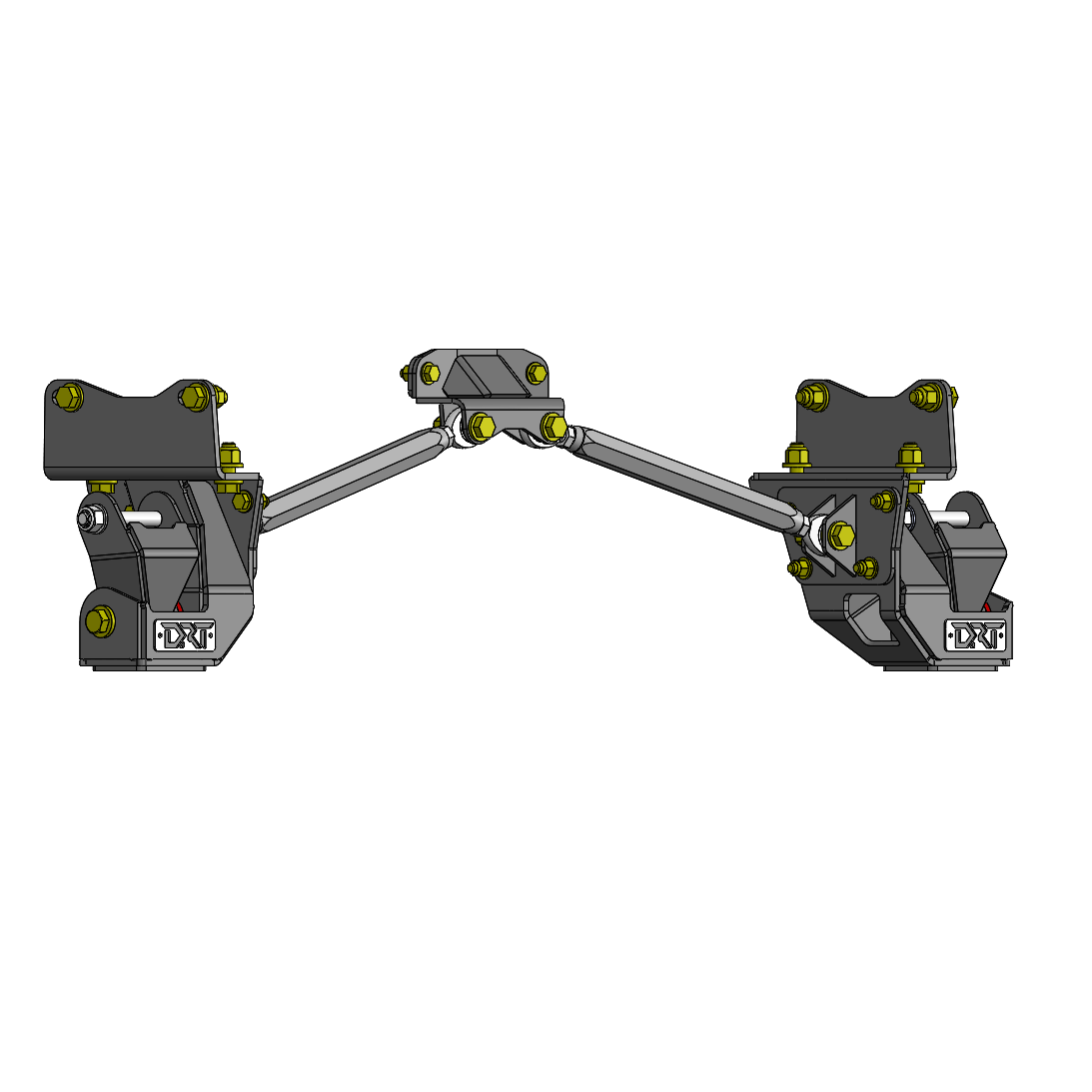

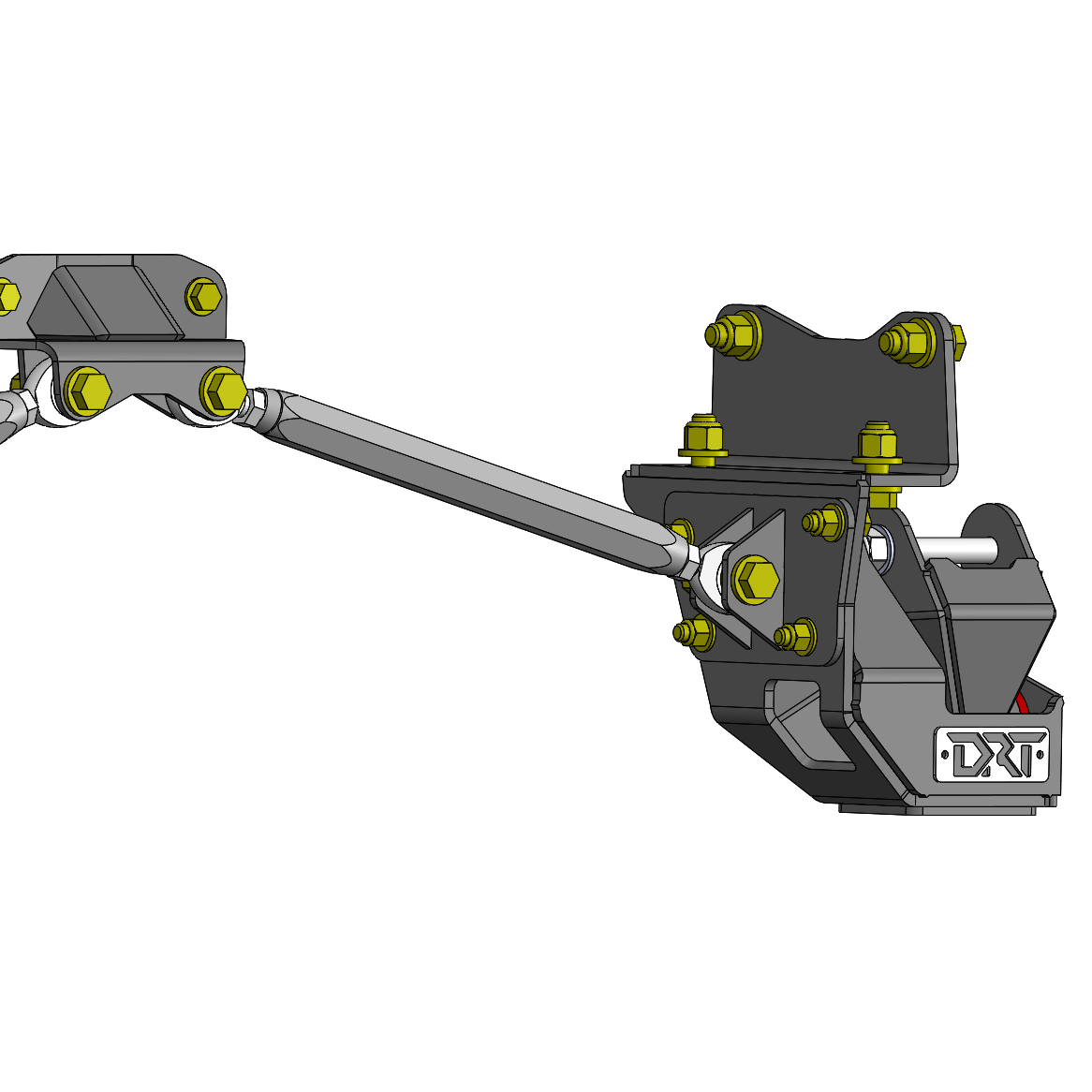

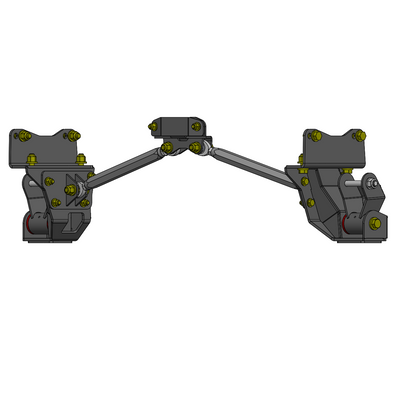

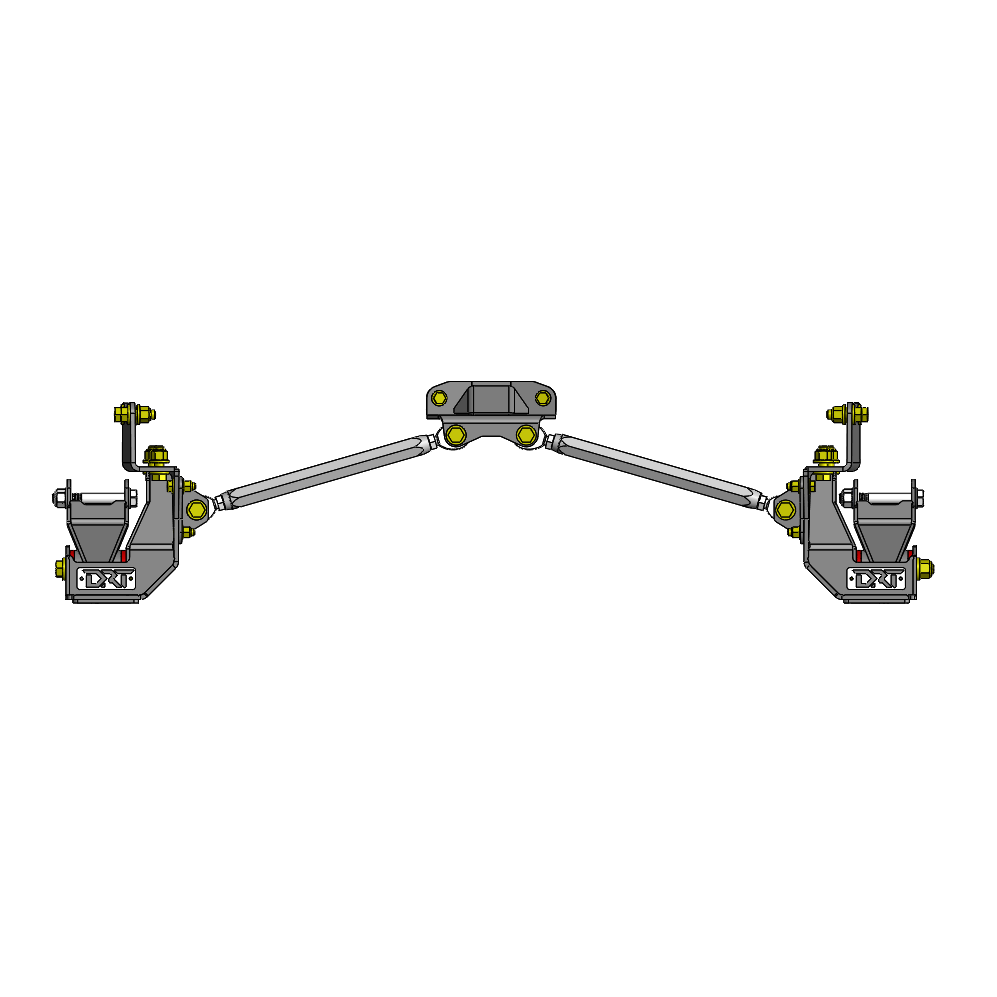

V2 hangers and crossbars are now shipping and differ slightly from the actual images seen here. The CAD photos seen are accurate to the V2 hangers. The updated crossbar is machined from billet, and the hangers include an additional hole to better fit longer leafs such as Deaver and Allpro.

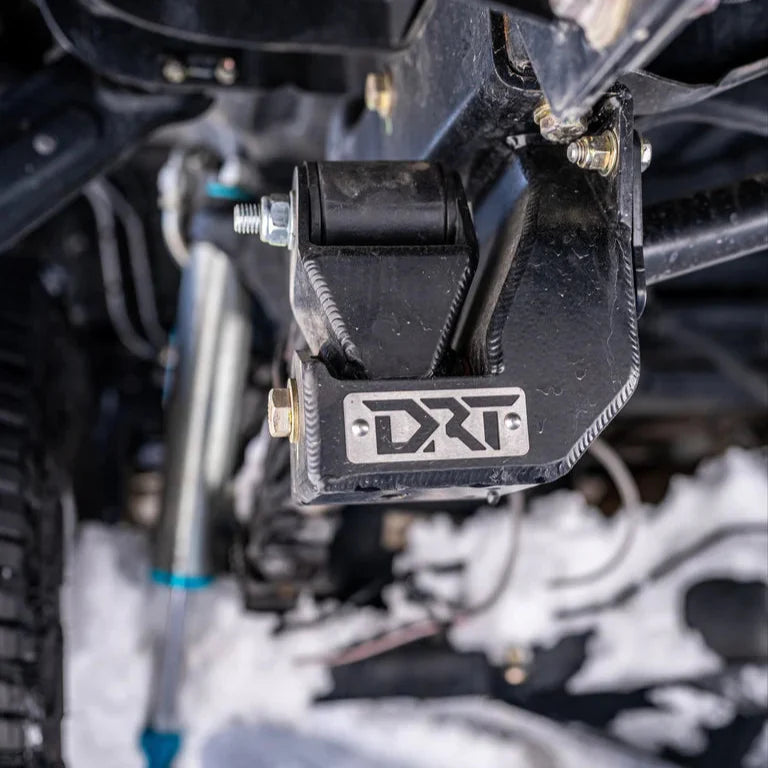

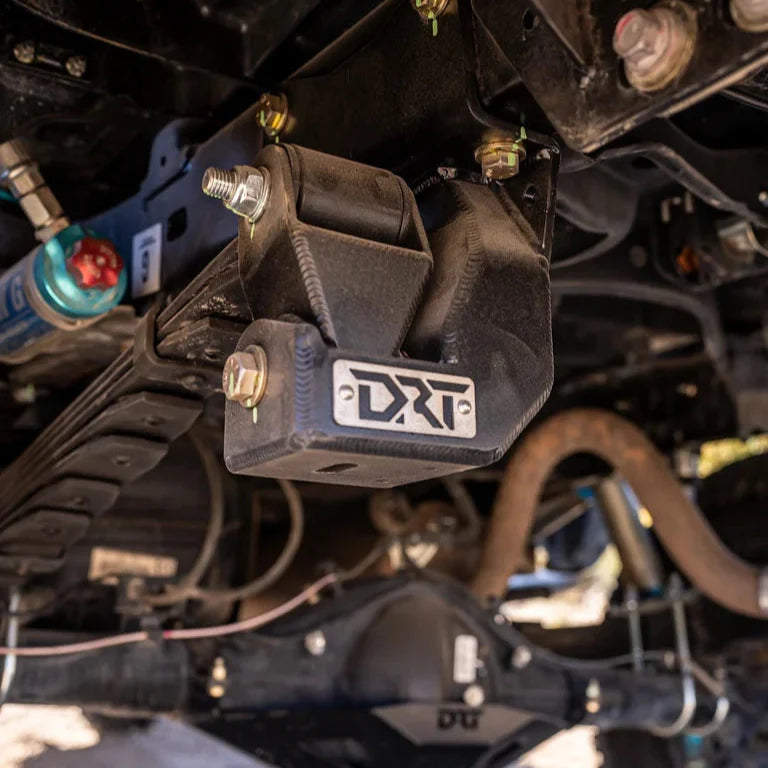

Eliminate Weak Stock Hangers

The factory hangers on 2005+ Toyota Tacomas are thin and prone to bending, deflection, and premature wear. This not only reduces ride quality but also prevents your leaf springs from performing properly.

Our DRT hangers are engineered to eliminate these issues by stiffening the mounting points, improving geometry, and allowing aftermarket leaf springs to cycle cleanly through their travel. The shackle pivot is moved back to optimize suspension performance and unlock the full potential of long-travel leaf springs.

Hanger Specs

• Built from 1/4" and 3/16" steel
• 100% MIG welded to industry-leading standards
• Durable satin black powder coat finish
• Stainless steel logo plates
• Includes Grade 8 hardware
• Improved geometry for smoother wheel travel
• Includes 3/16" steel shackle
• Zerk fittings and greaseable polyurethane bushings
• 2" x .250 DOM pivot tube (machined)
• Designed to align perfectly with the tapered Tacoma frame rails

Note: Allpro leaf springs require a 1/8" spacer. 1/8" spacers are included standard.

Crossbar Upgrade

• For even greater improvements, add the optional billet crossbar.
• Ties the hangers into a factory crossmember
• Increases frame and hanger rigidity
• Reduces the frame flex Tacomas are known for
• Enhances suspension performance and stability
• Provides peace of mind during hard landings directly on the hangers
• Machined from Aerospace grade 6061 aluminum and Type III clear anodized

Lead Time

Estimated lead time: 4-6 weeks. Made to order.
