LT 3-Link (LT3) - 03-24 4Runner | GX | FJ Cruiser

Countless hours have been spent to ensure the highest quality, best fitment, and best performance out of your vehicles new rear suspension.

No more factory link geometry limiting your handling capabilities or potential wheel travel. No more abrupt arch swing, pinion dive, or flex steer.

Whether you're blasting through whoops, hitting a rock trail, racing, or just finding your camping spot, this kit will make the journey even better. (4600 class compliant)

We've taken all the guess work out making this a fast and easy upgrade.

Vehicle Fitment: (with or without KDSS)

• 03-09 4Runner
• 10-24 4Runner
• 07-14 FJ Cruiser
• 03-09 GX470
• 10-23 GX460

Product Details:

• Easy Install thanks to alignment slots in the mounts; No tape measure required

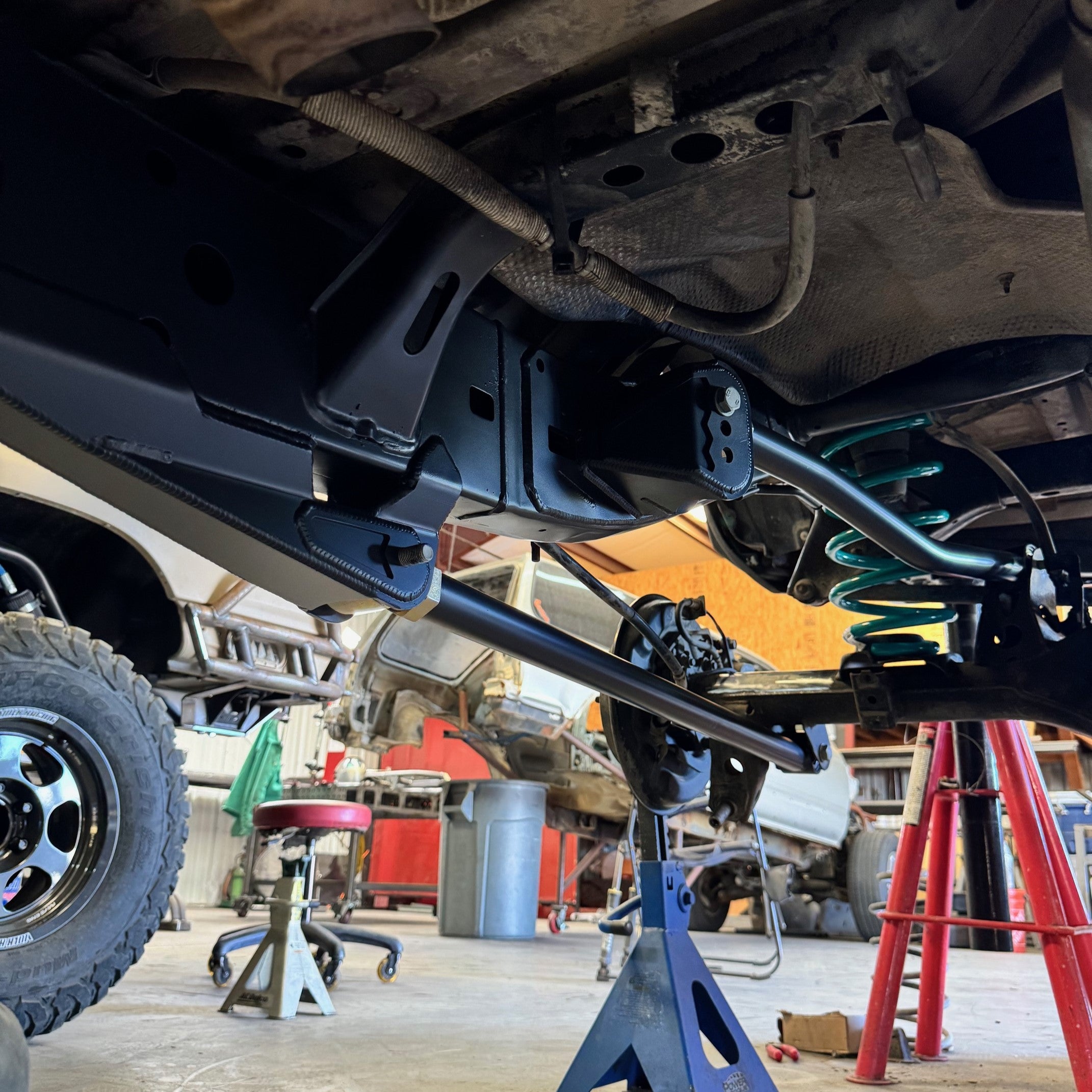

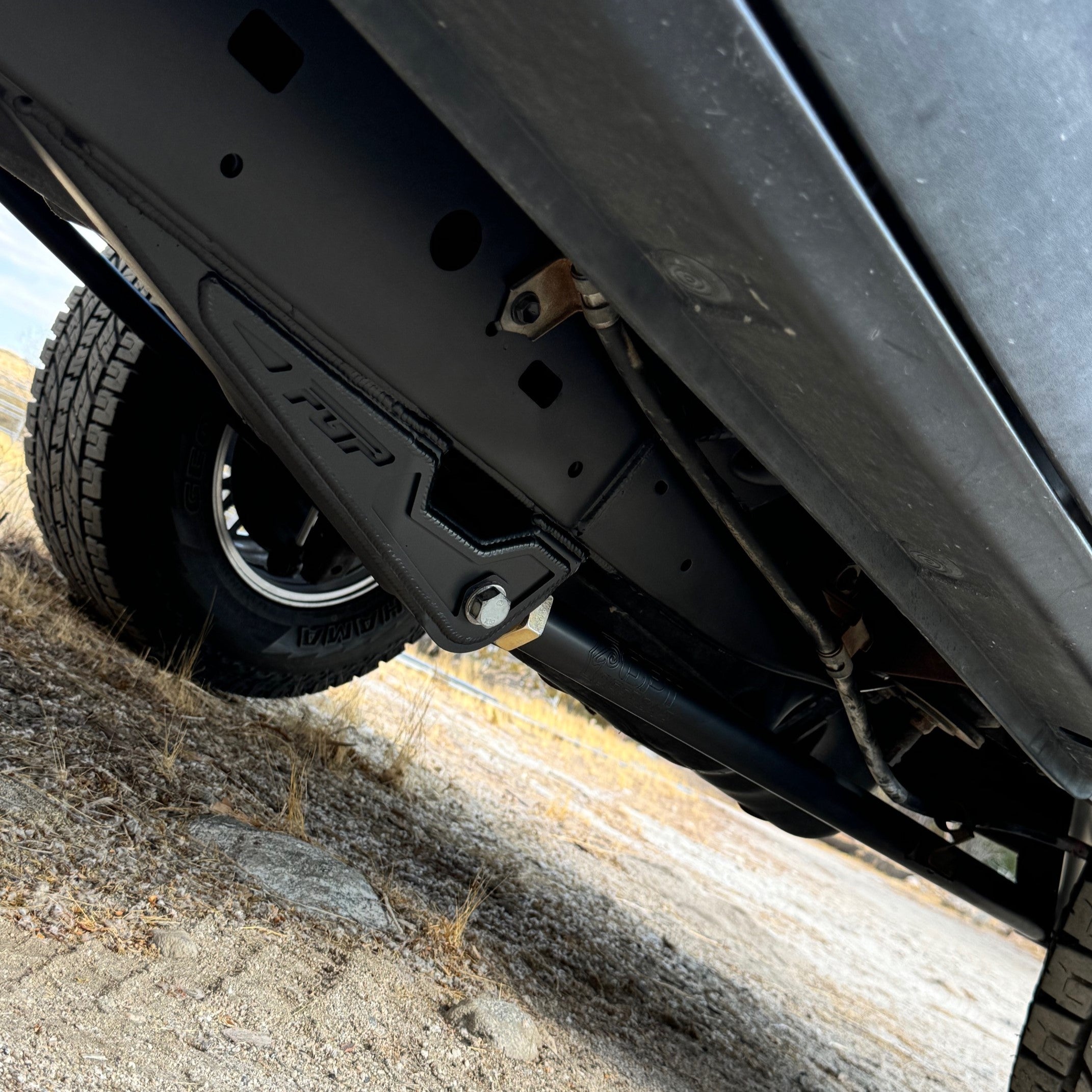

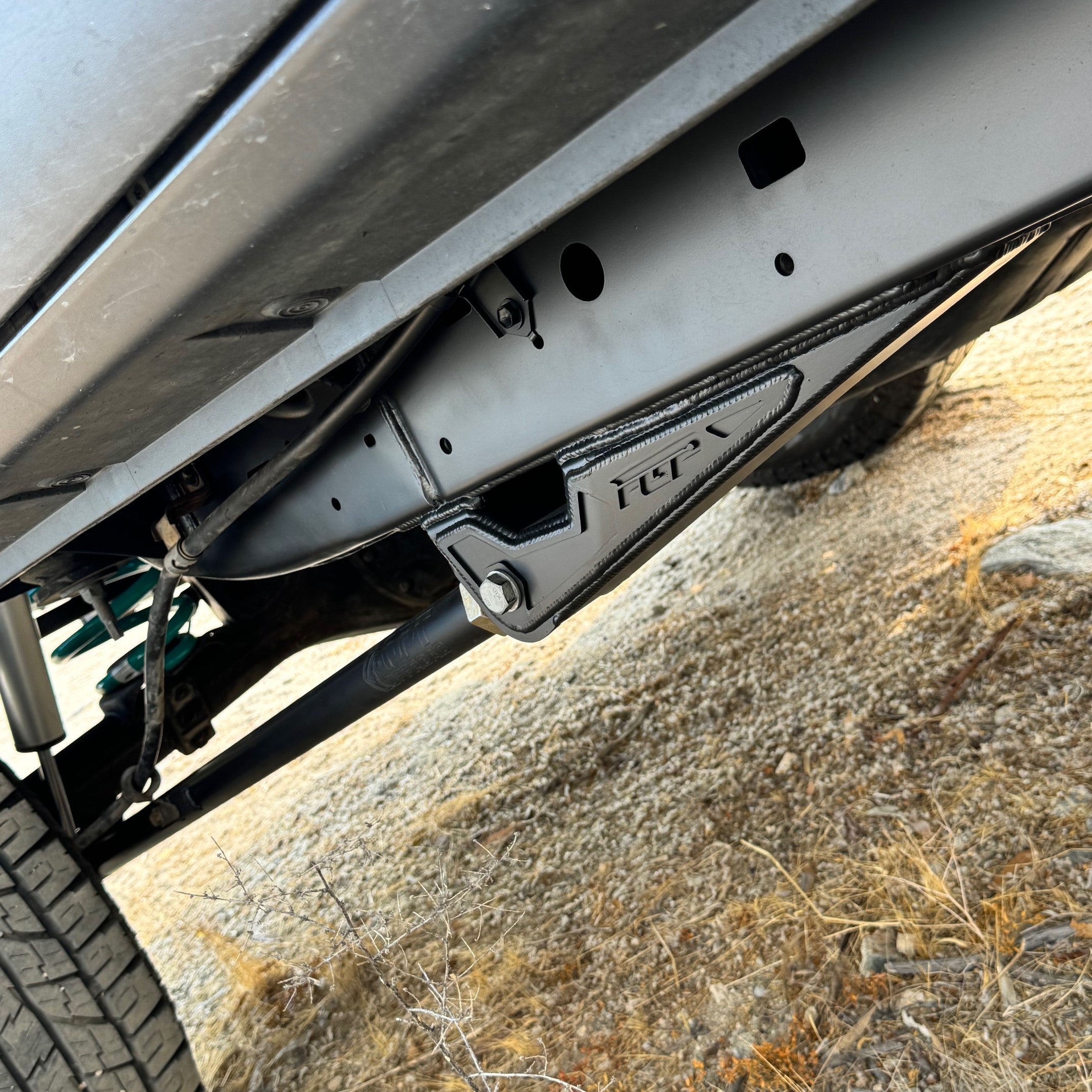

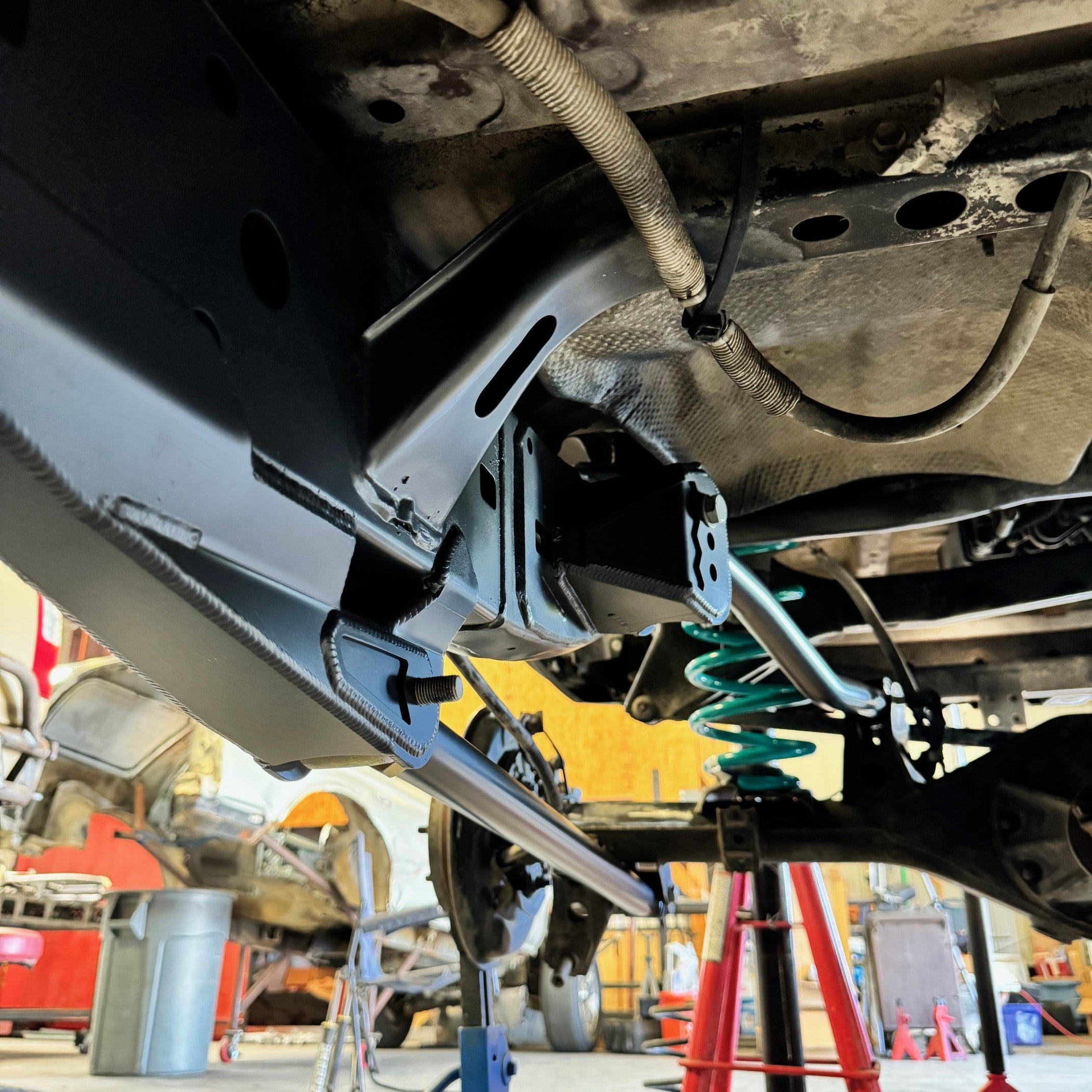

• High angle lower mounts for smooth transition over obstacles

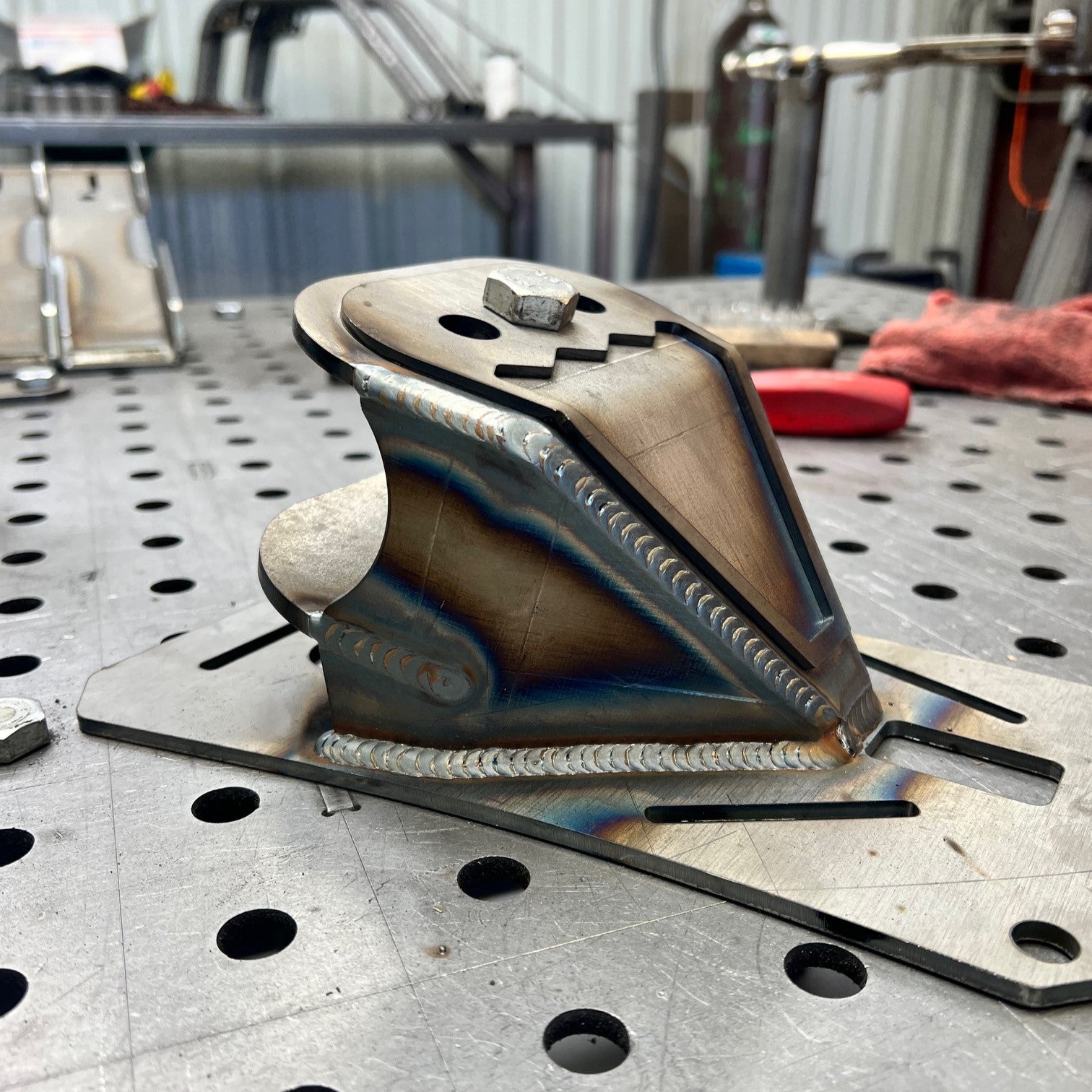

• 3 position upper mount to adjust antisquat for any terrain
• 1/4" plated bottom on lowers to take a beating

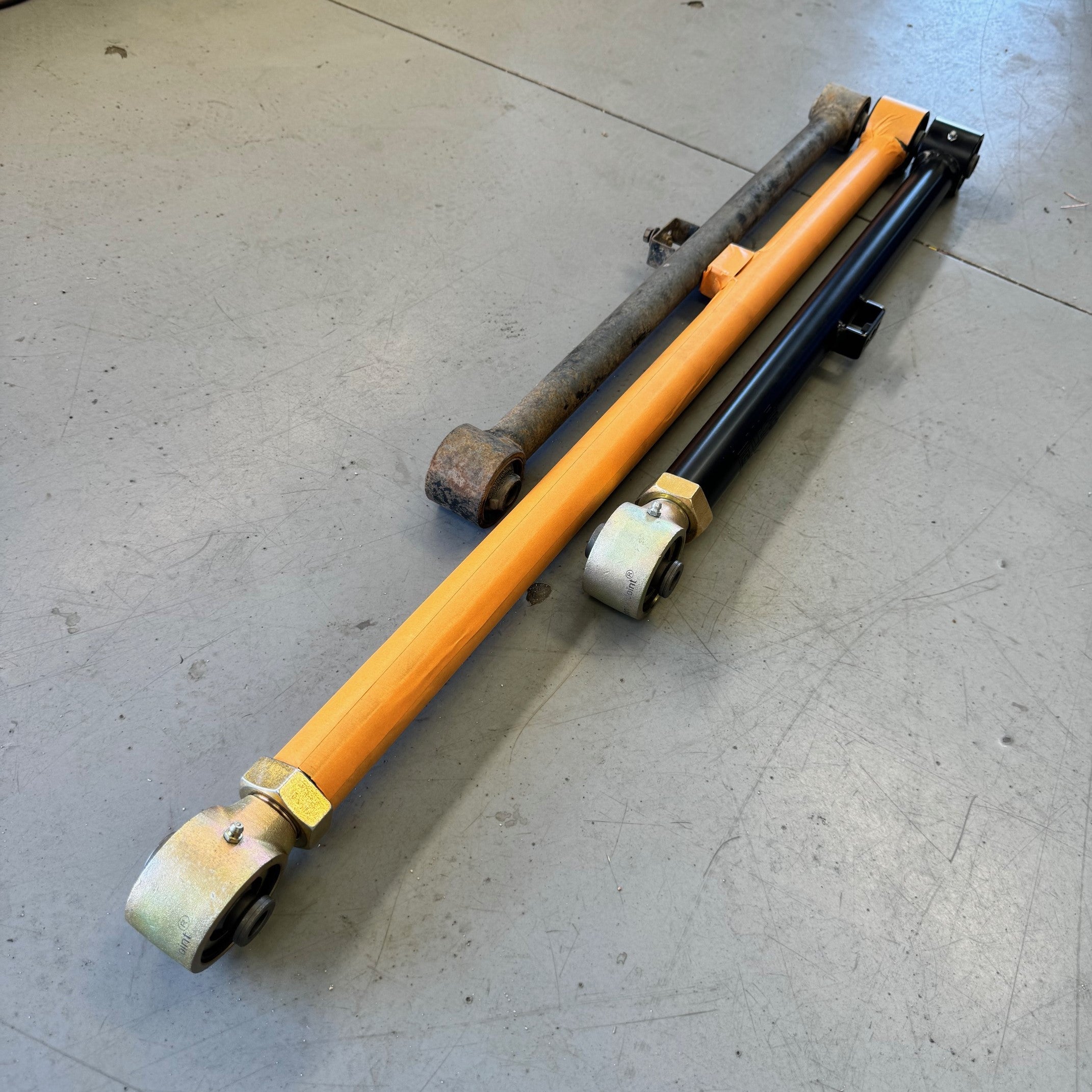

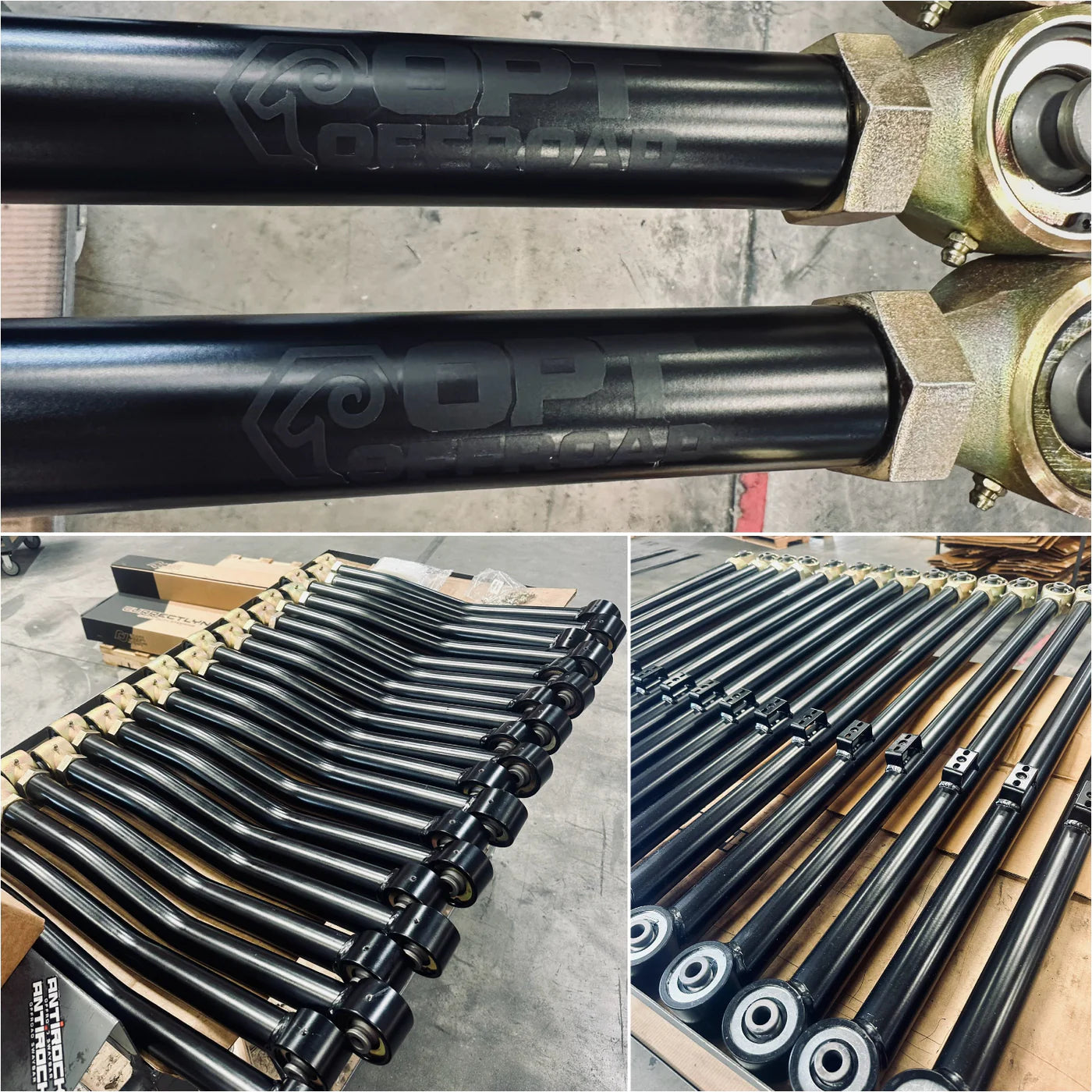

• Powder coated adjustable Opt Offroad links with serviceable Johnny joints

• Emissions friendly; Keeps factory gas tank location
• No cutting required on axle side (Removing driver side upper mount optional)

• No loss in up travel thanks to the carefully designed adjustable upper link


Package Includes:

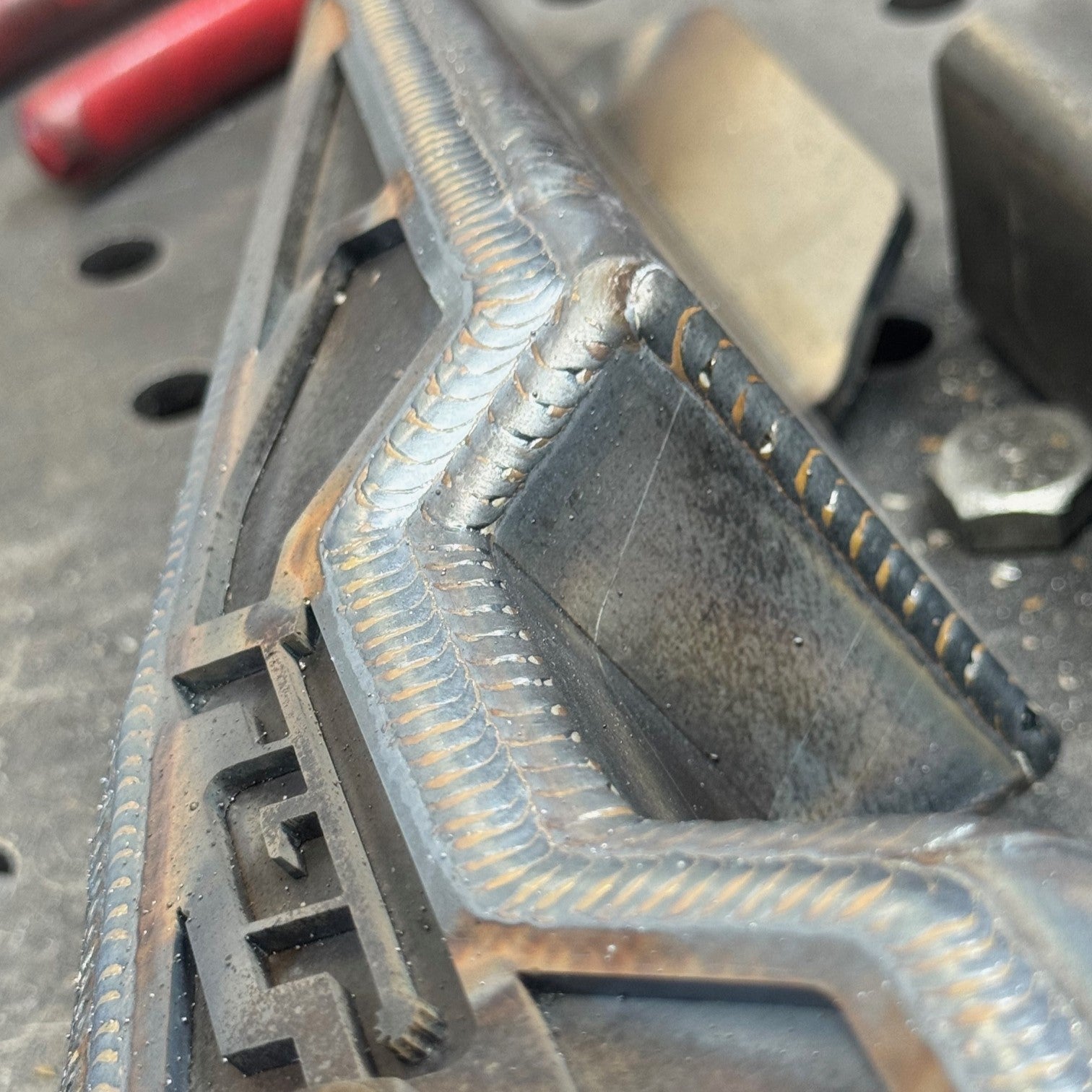

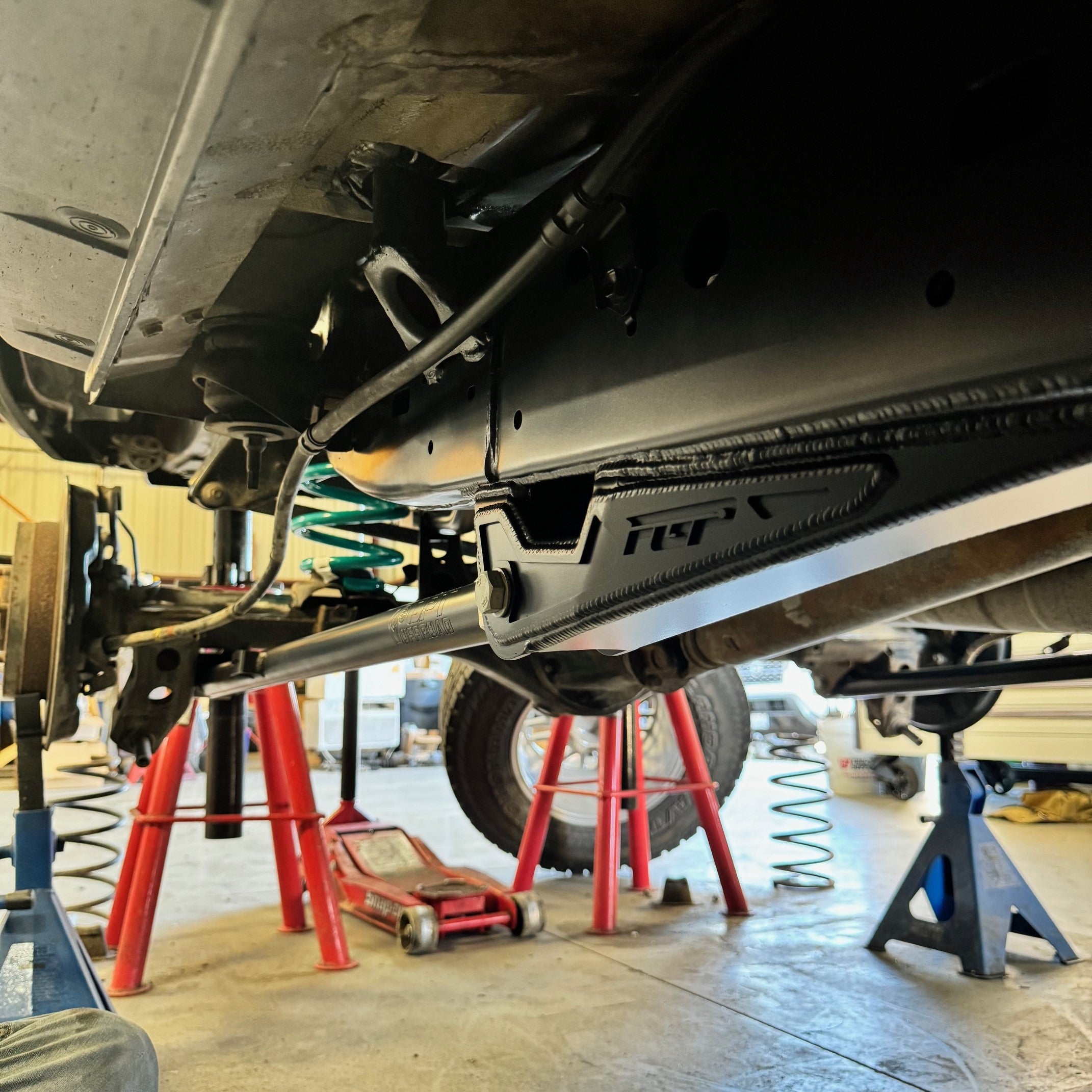

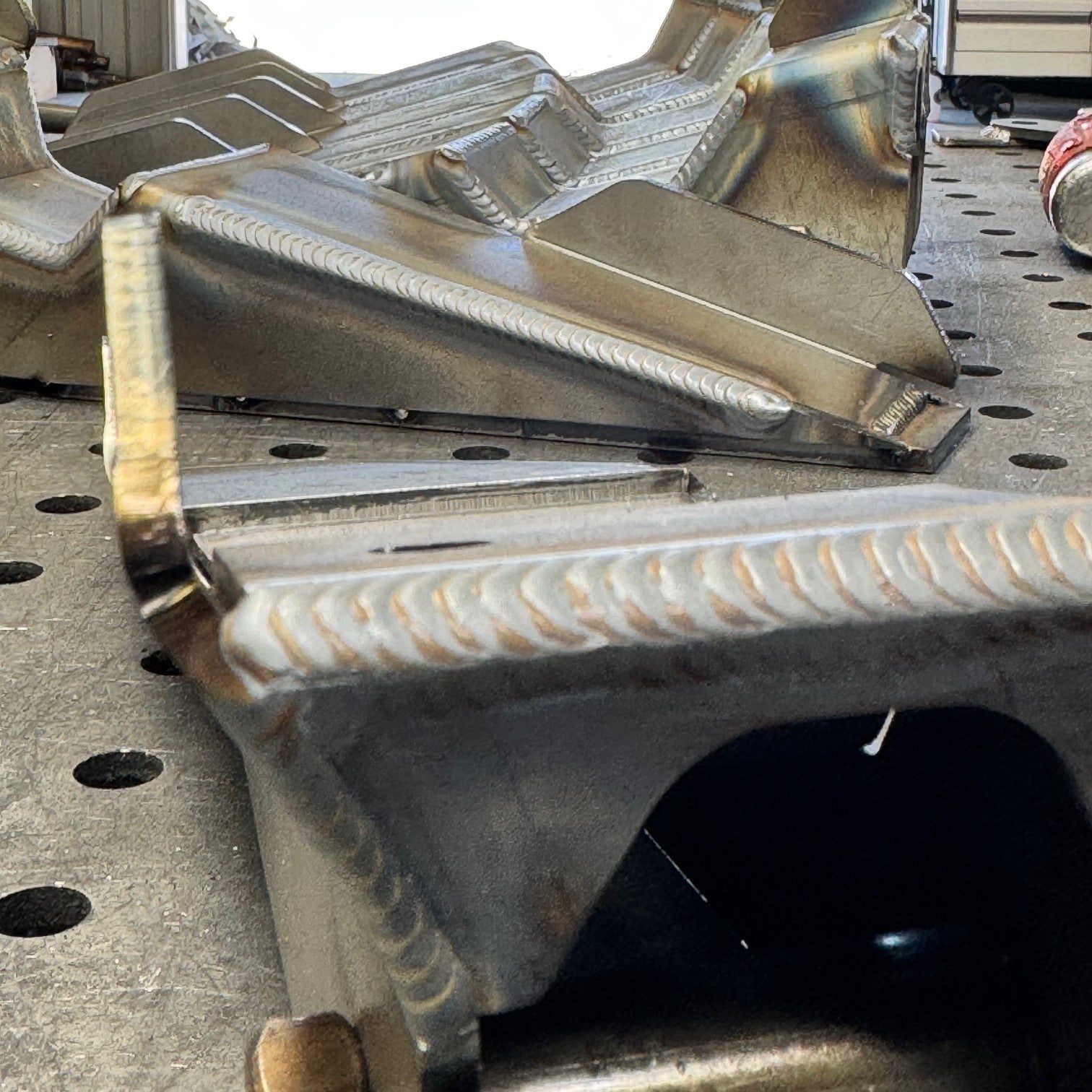

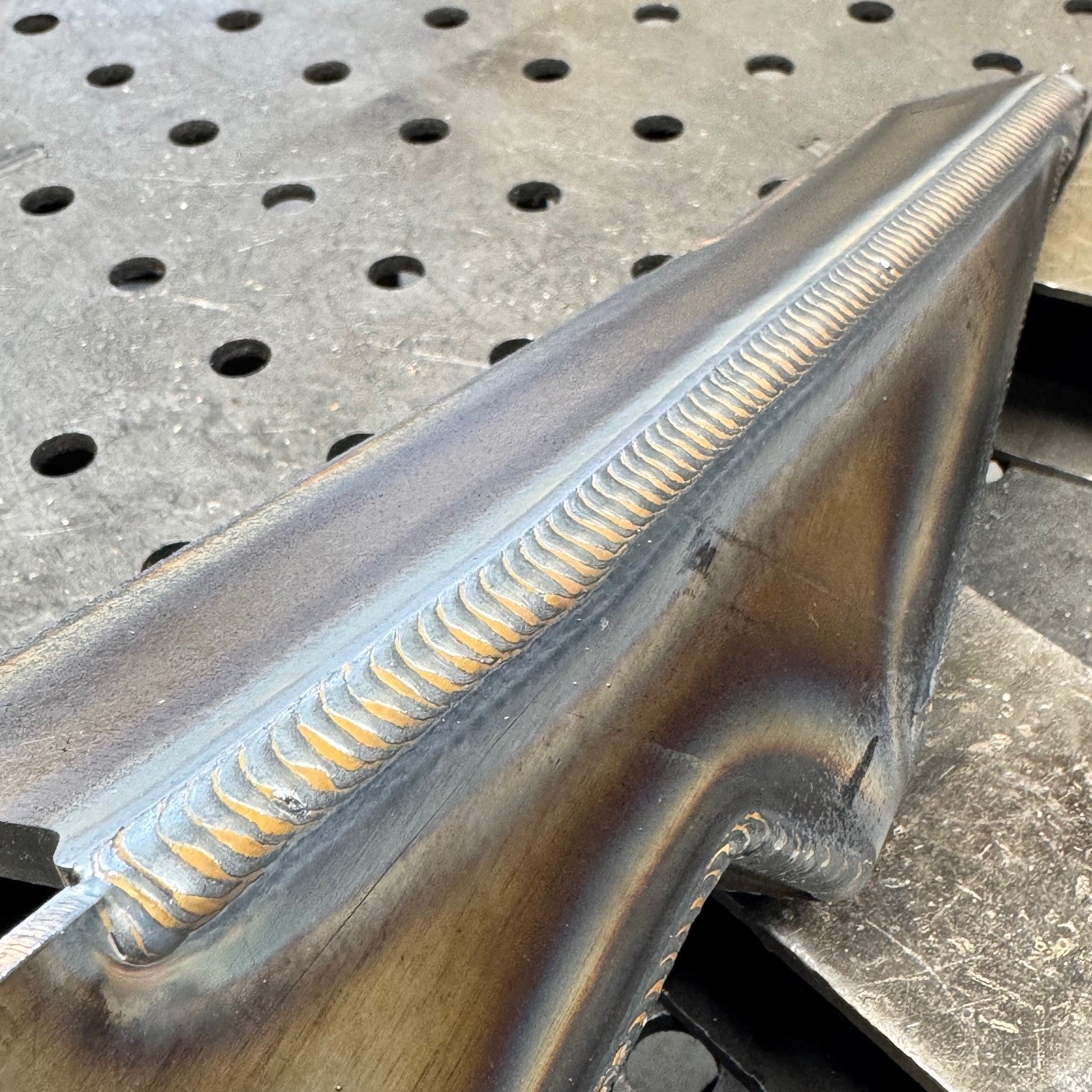

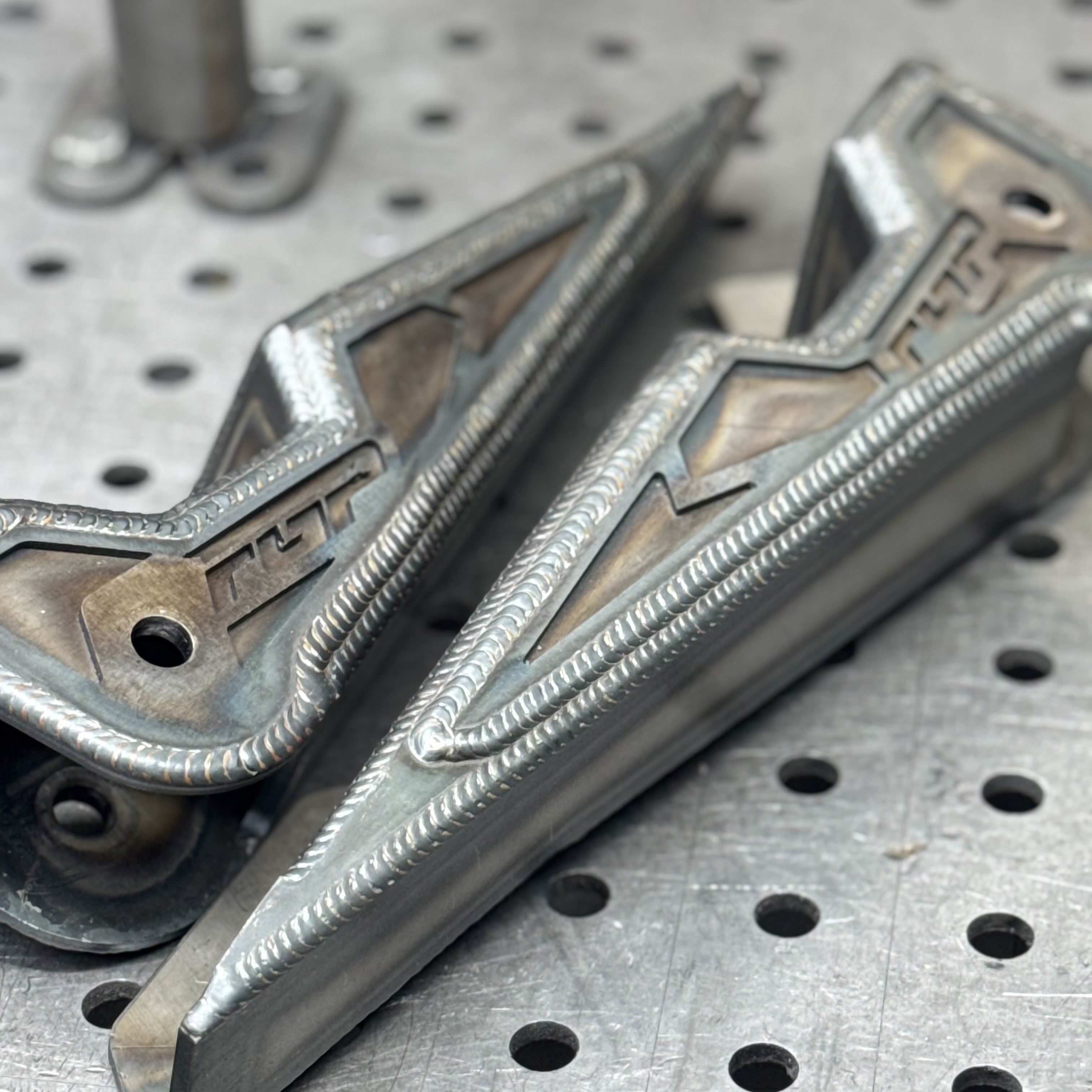

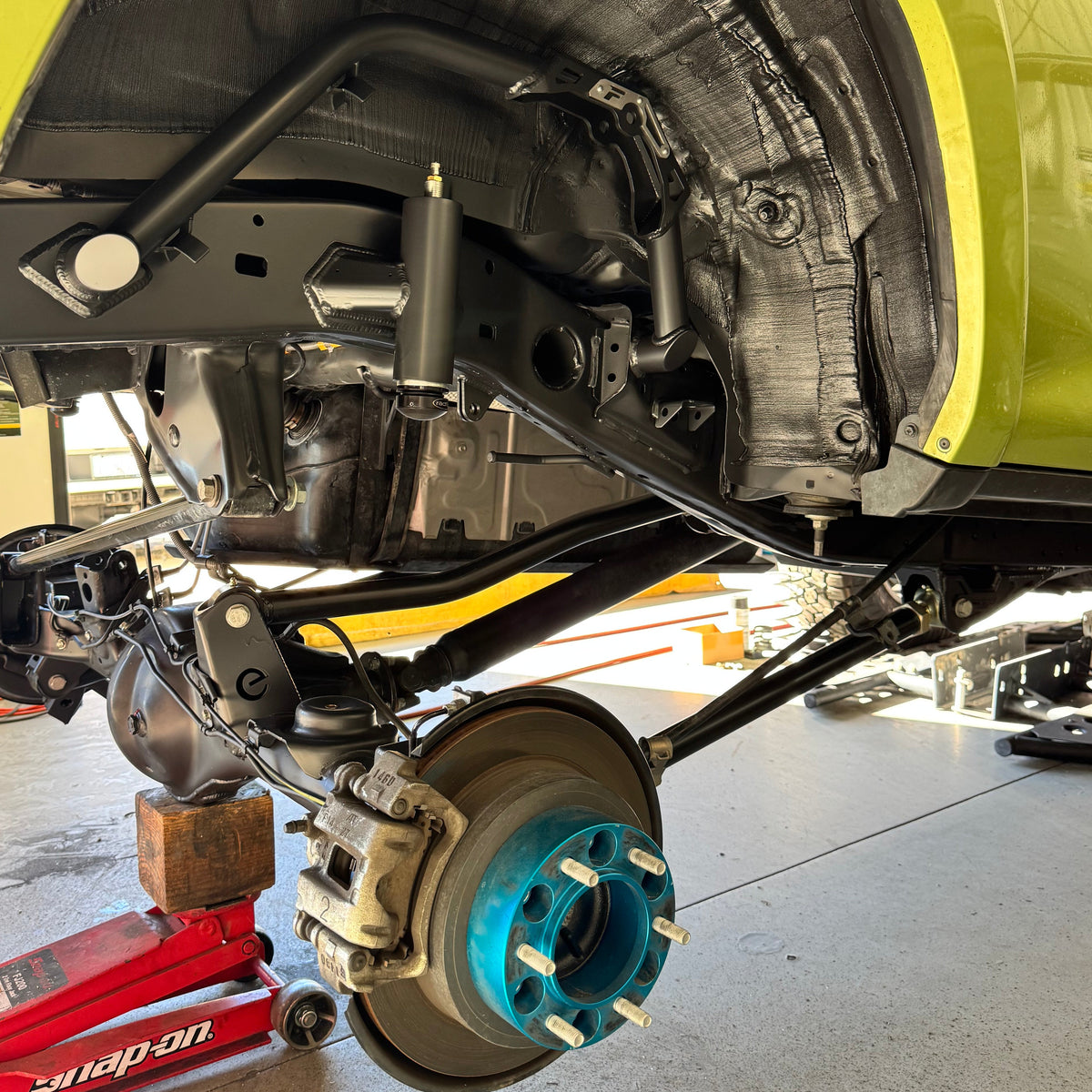

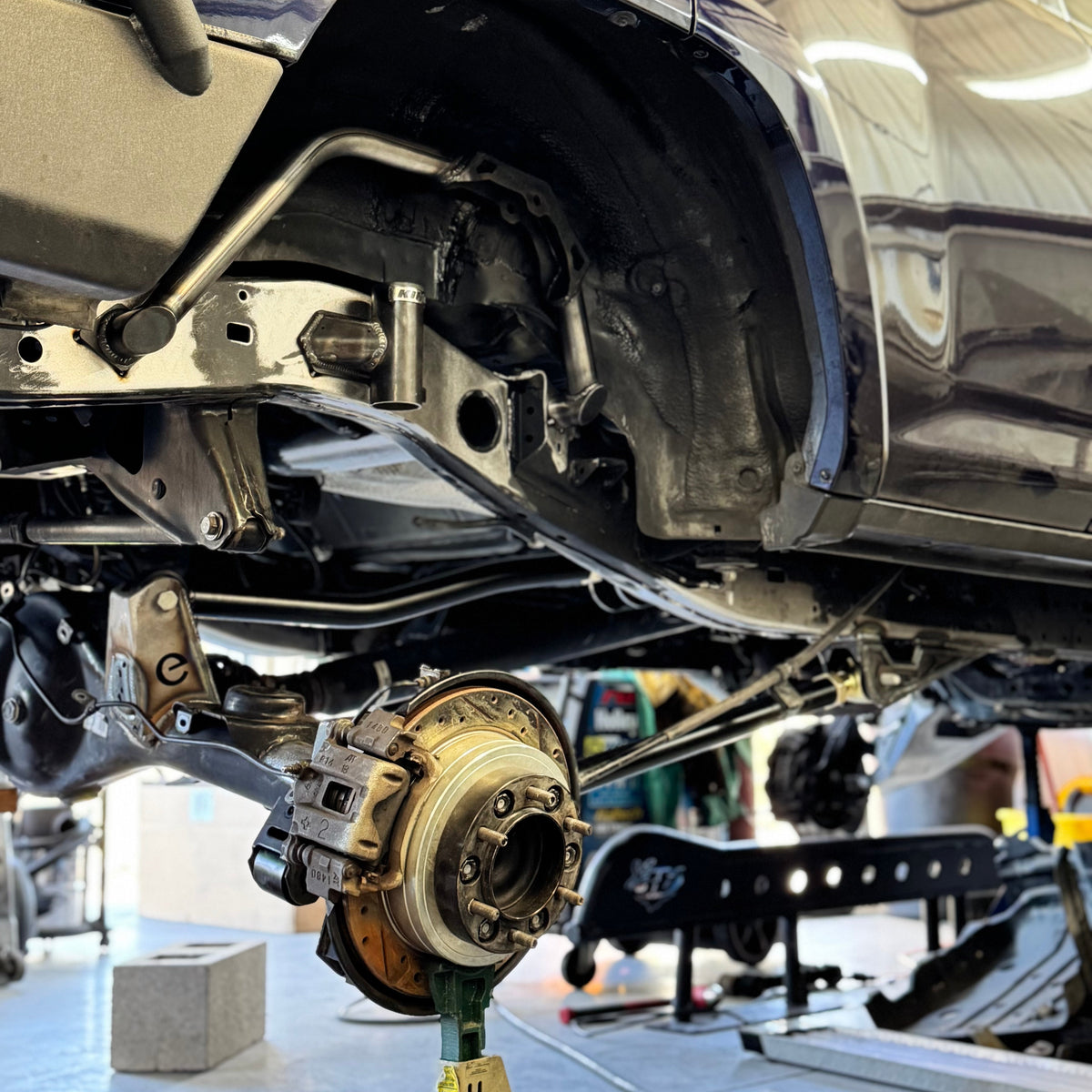

• Fully welded FGP Upper/Lower frame side link mounts (x1 upper/x2 lowers)
• Custom Opt Offroad Upper/Lower links (x1 upper/x2 lowers)

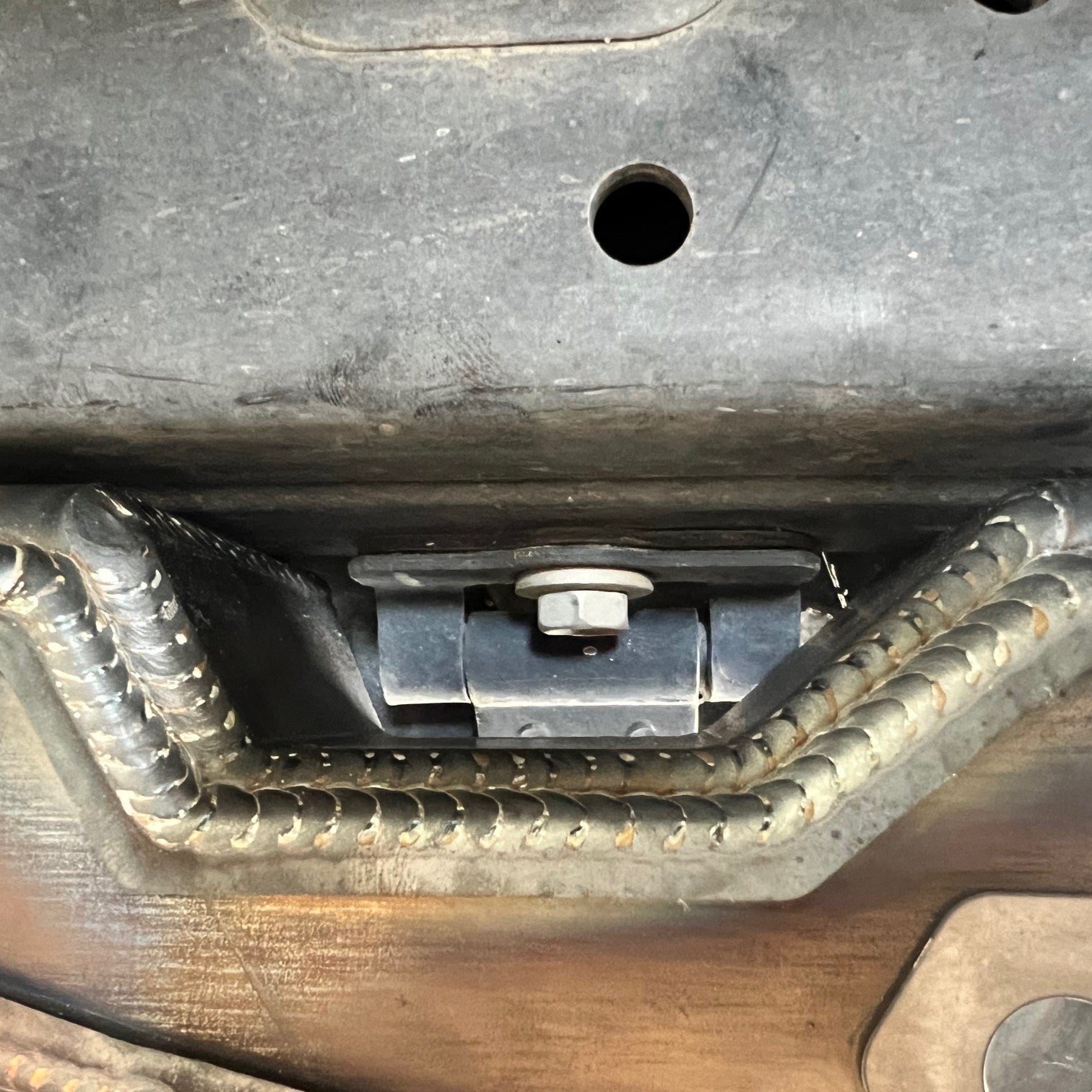

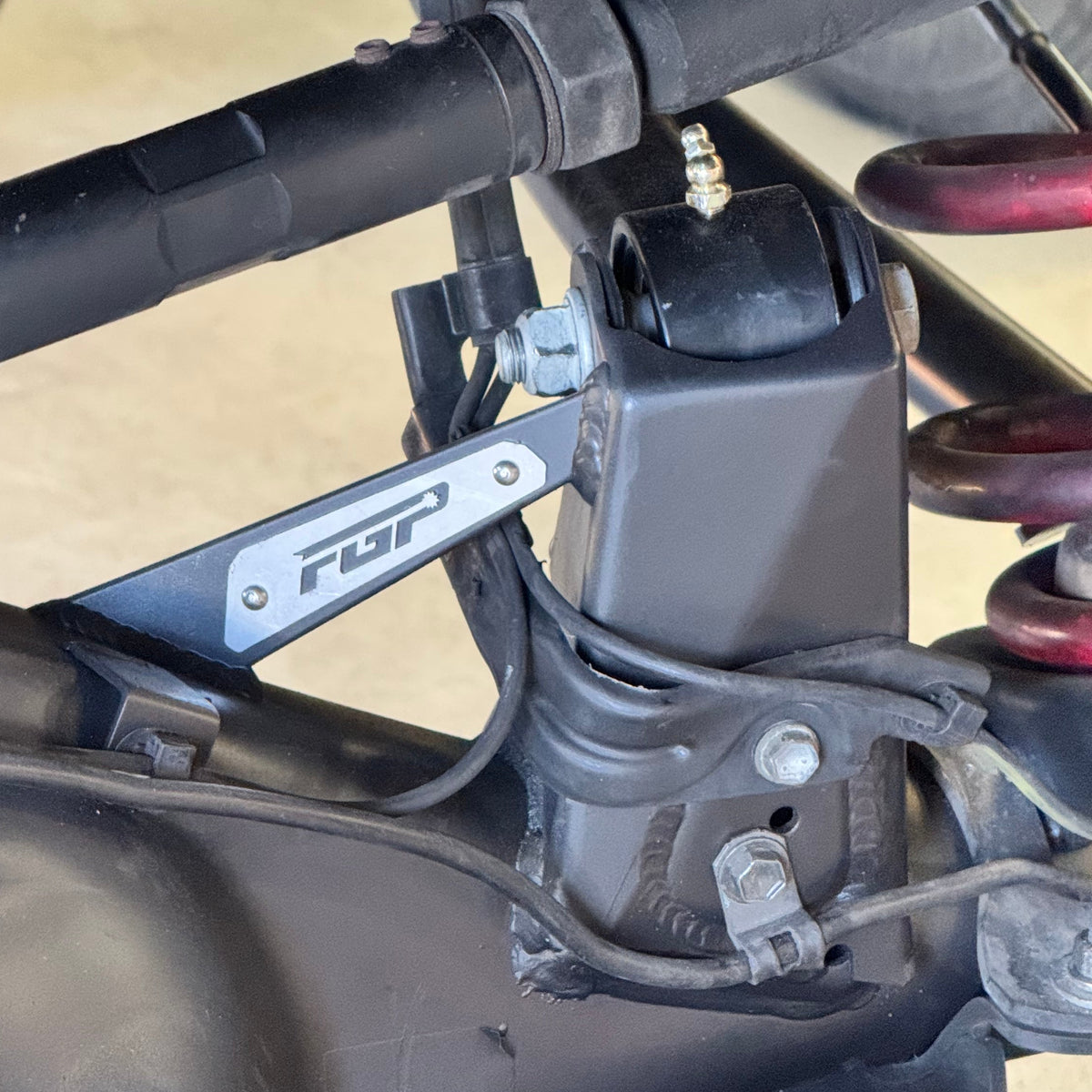

• Eimkieth upper link mount reinforcement
• All necessary hardware
• Decals

Commonly asked questions:

• "Do I need front long travel to run this kit or see a benefit?"

Absolutely NOT. Your rear suspension plays a huge roll in overall handling of your vehicle. Regardless of what your front suspension setup is, everyone can benefit greatly from this upgrade.

• "How much travel does this give me?"

None actually.. An upgraded link setup alone will not automatically give you more wheel travel. BUT, it opens up the possibility to get more depending on your shock configuration. Factory links often limit travel due to driver side upper link contacting your gas tank. The primary objective of this kit by itself is to improve handling and stability of the vehicle. An added bonus is that you are now capable of obtaining a great deal more travel without your link setup limiting you.

• "Does it come with new shock mounts?"

It does not. We understand not everyone wants only one option for mounting shocks. So there will be mounting solutions available separately very soon.

• "What size shocks can I run with this kit?"

We recommend no larger than a 16" shock if mounted perpendicular to the axle. Longer can potentially cause panhard pull resulting in unstable rear end characteristics at full droop. User discretion advised.

• "Will this be available un-welded"


To ensure quality and safety standards we have elected to only offer this kit fully welded/assembled.

Current Estimated Lead Time: 3-4 weeks.

Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
