Axle Link Mounts
You spoke, we listened..

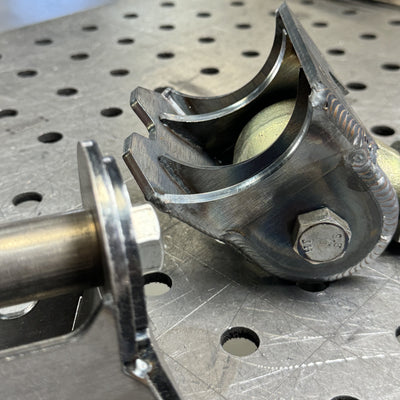

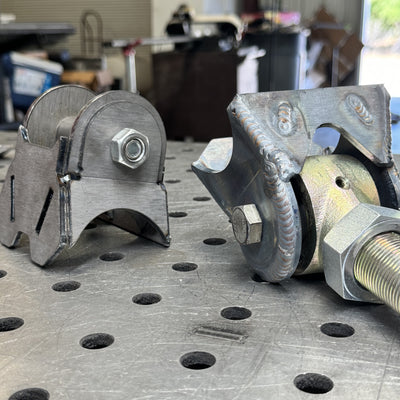

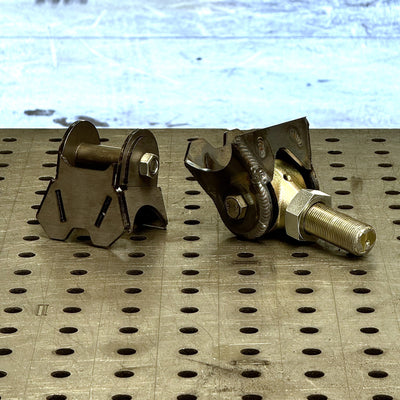

Introducing our newest overly-engineered addition to our custom suspension arsenal, axle link mounts.
These mounts have been specially designed to withstand a serious beating and can be utilized in your custom front/rear 3 or 4 link suspension.
These lowers feature upper and lower plates to provide a full wrap around welding surface to the axle housing, as well as offset inner plates for even more weld surface to spread the load on the housing.
Made to fit average 1.25" Johnny Joint/Heim mounting widths. Available in two sizes.
THIS KIT INCLUDES:
- (2) Fully assembled/welded lower link mounts
SPECS:

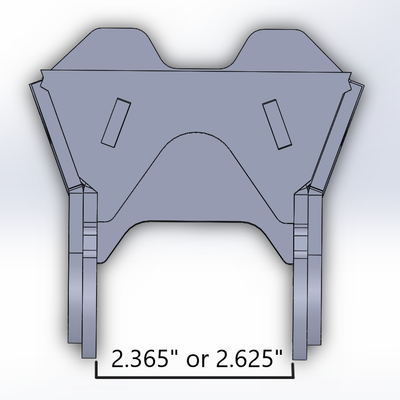

- Available in 2.365" and 2.625" inner width

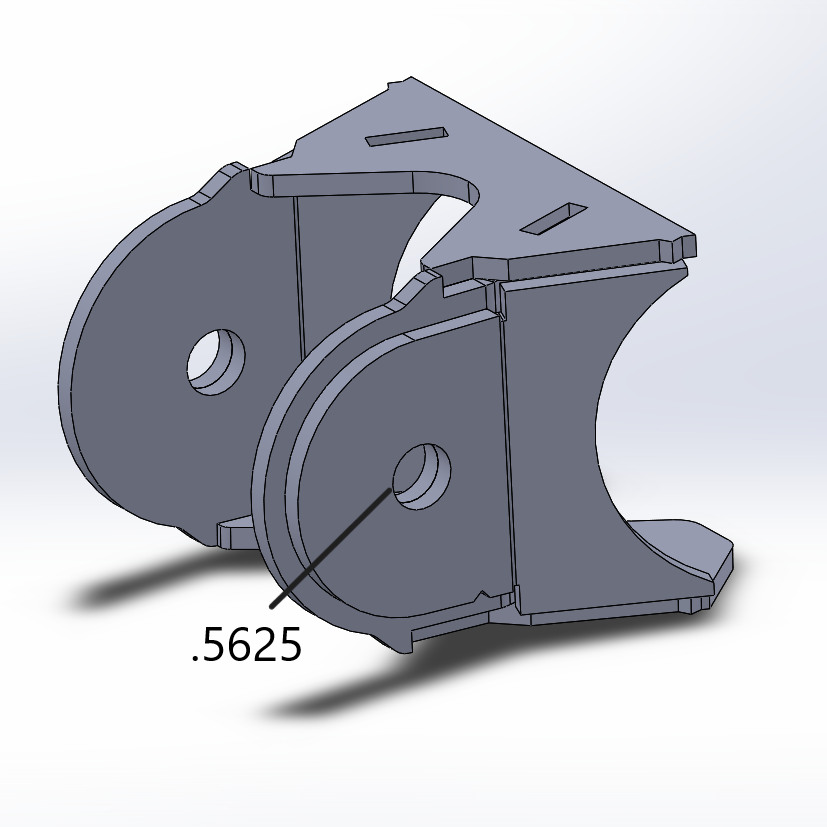

- 9/16" (.5625) bolt holes (drilling required for 5/8" bolts)
- Fits 3" axle tubes (Can fit larger housings if modified with grinder)
Current Estimated Lead Time: 3-5 weeks
Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
