Cab Mount Relocation Kit – 2003–2023 4Runner, 2007–2014 FJ Cruiser & Lexus GX470

The Strongest CMR Kit on the Market

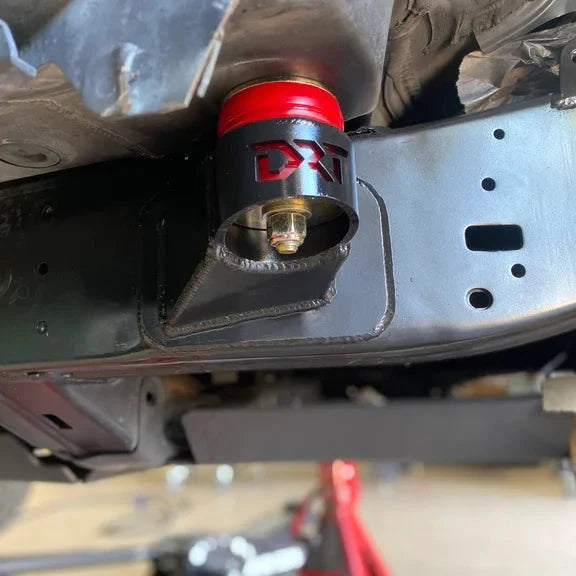

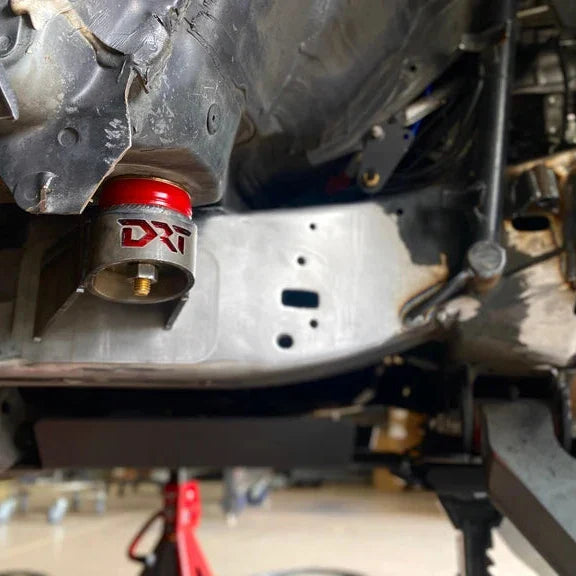

The DRT Fabrication Cab Mount Relocation (CMR) Kit is the proven solution for running 35” tires on your Toyota 4Runner, FJ Cruiser, or Lexus GX. Factory cab mounts (or body mounts, also known as BMC in the 4Runner community) don’t leave enough clearance, and even with a traditional “cab mount chop,” rubbing issues often remain. Our relocation kit moves the cab mount completely behind the firewall, providing the clearance you need for larger tires without compromise.

Built to Withstand Anything

• Unlike other kits, the DRT CMR system is designed for maximum strength and durability:
• 3/16” frame overlay plate disperses load and prevents stress cracks
• Fully boxed cab mount design (the only one on the market)
• Constructed from laser-cut 3/16” & ¼” plate steel
• .188 DOM tube housing with polyurethane cab mount bushings
• The strongest cab mount relocation kit available today

Proven Fitment, Trusted by Thousands

We’ve sold thousands of these kits and refined the design through multiple revisions to guarantee a perfect fit. Installation is straightforward and engineered to be as hassle-free as possible, so you can focus on building your rig instead of modifying parts to fit.

Vehicle Fitment

• 2003–2023 Toyota 4Runner (4th & 5th Gen)
• 2007–2014 Toyota FJ Cruiser
• 2003–2009 Lexus GX470

Specs

• Material: laser-cut 3/16-inch and 1/4-inch plate steel plus .188 DOM tubing
• Frame overlay plate: 3/16-inch, load-dispersing
• Construction: fully boxed cab mount, the only kit on the market with this level of reinforcement
• Bushings: .188 DOM with polyurethane (color choice at checkout)
• Per-side weight: approximately 13 lb
• Country of origin: USA (hand-built in Gilbert, AZ)

Lead Time

Estimated lead time: 3-4 weeks from order placement. Made to order.

Shipping

Free shipping to all addresses in the Lower 48 states. For Alaska, Hawaii, and U.S. territories, shipping rates will be calculated and applied at checkout.

Installation

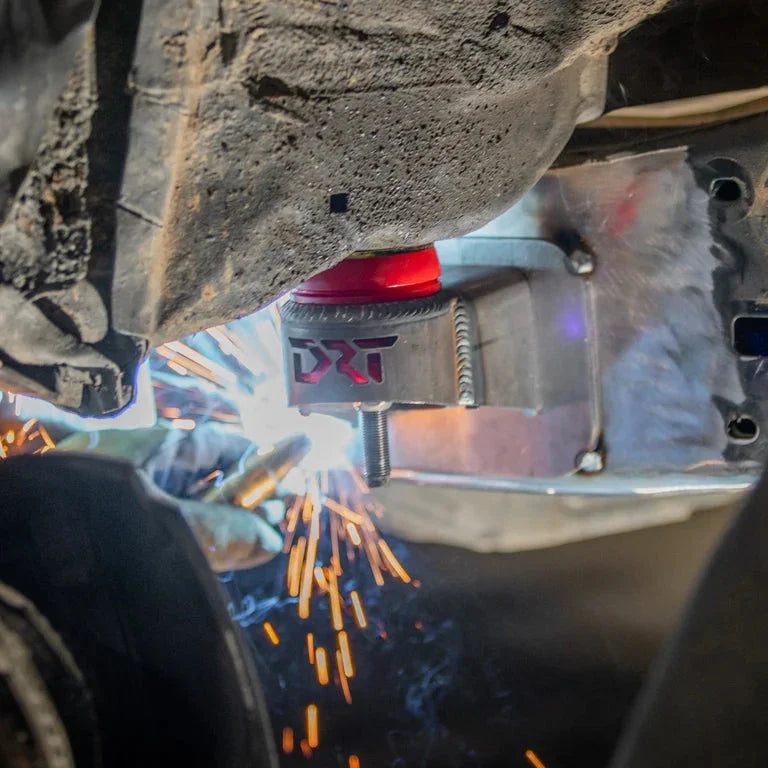

Welding required. Designed for professional installation by an experienced fabricator or welder. Additional prep required: fender liner trimming and pinch weld flattening. Off-road use only.
