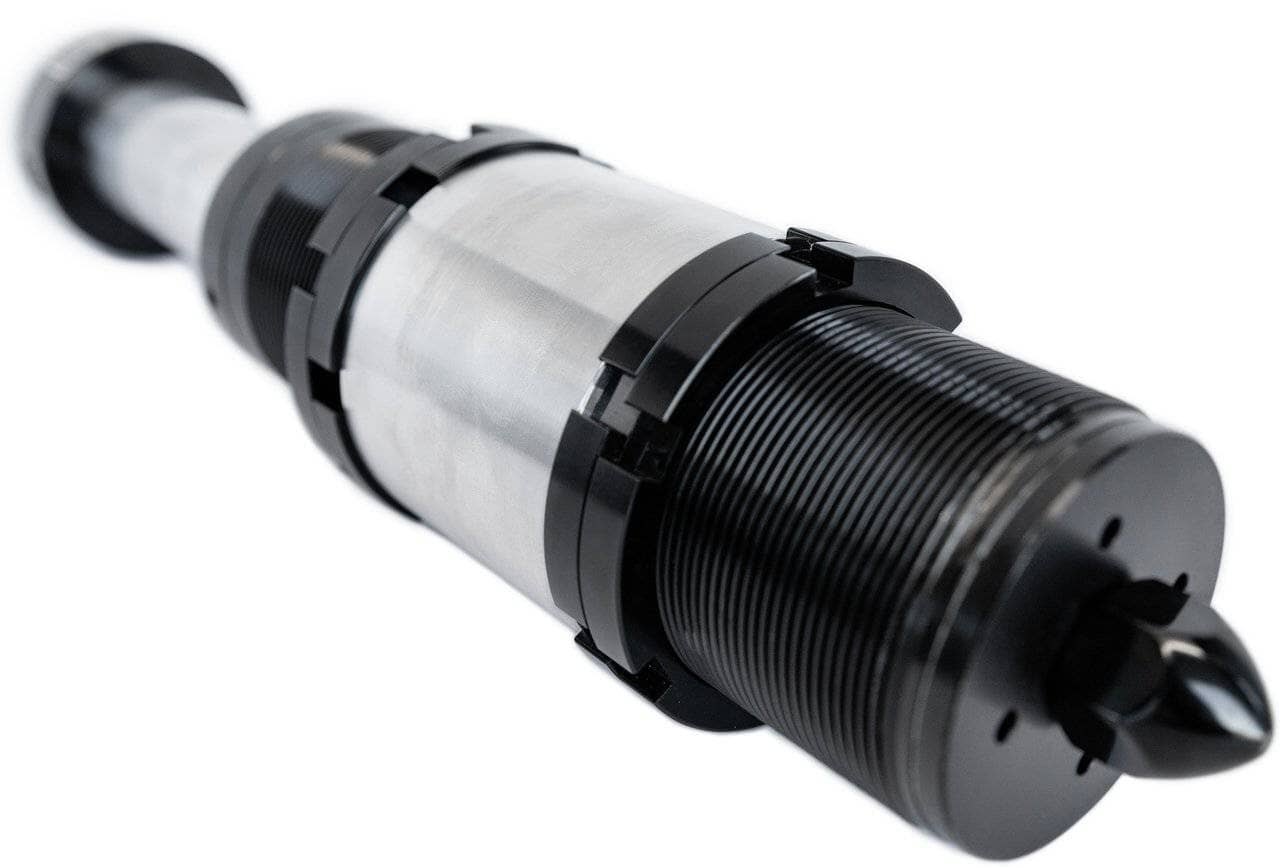

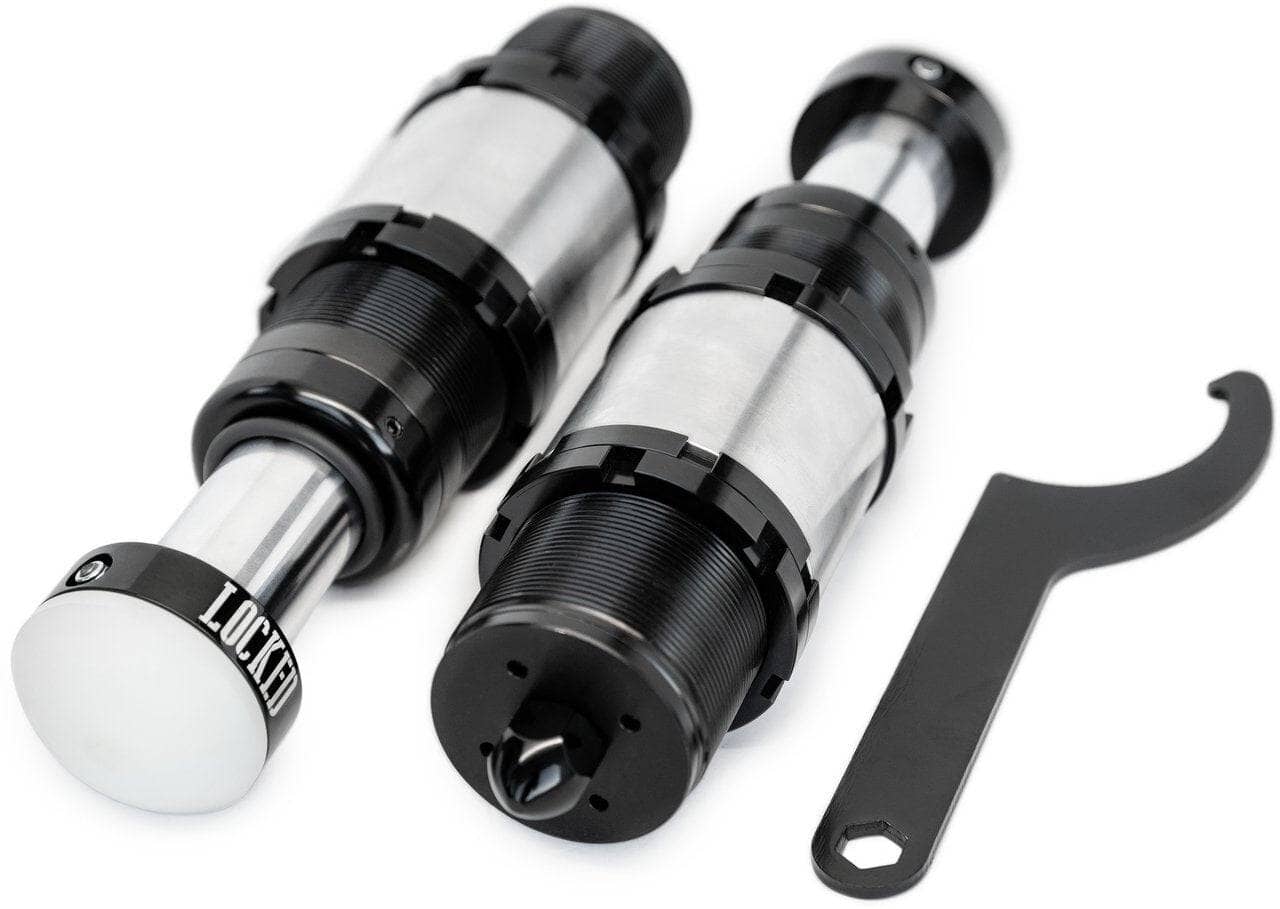

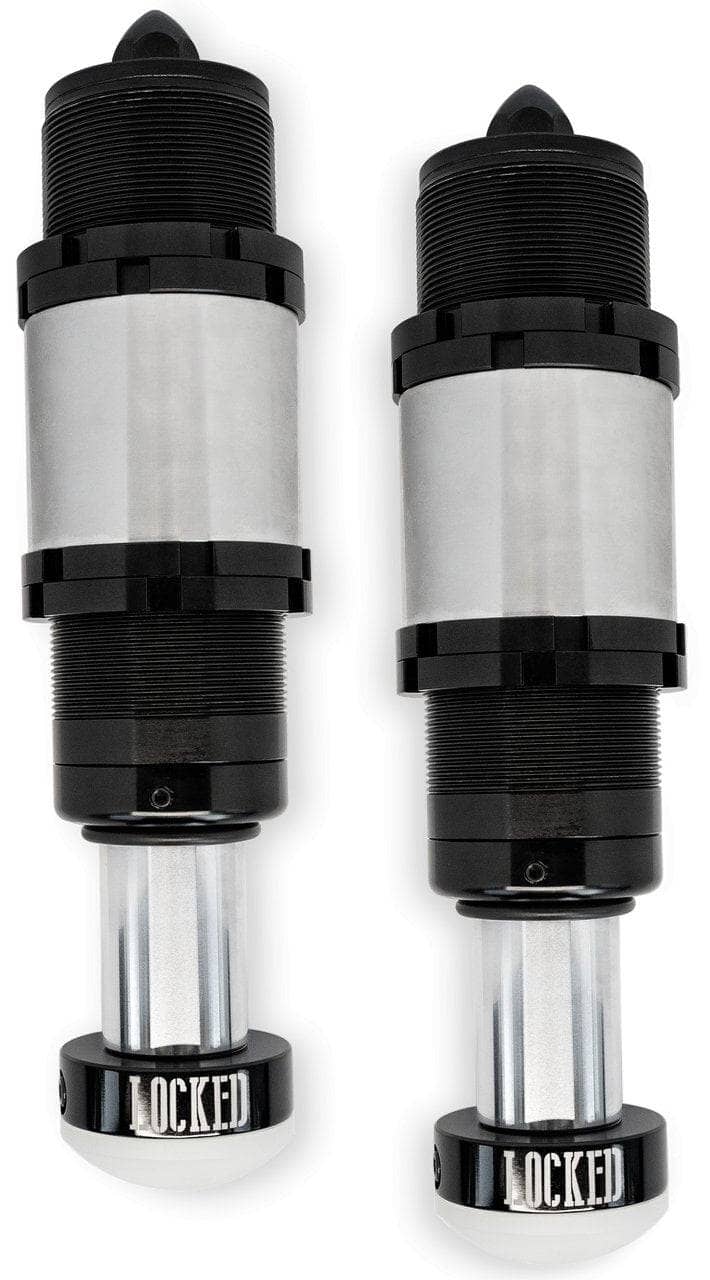

INCLUDES:

• (2) 2.5" Bump Stops
• (2) Threaded Mounting Sleeves (pin-style also available)
• (2) Sets of Locking Rings per Bump Stop

TECHNICAL SPECS:

• 2.5" Diameter Body
• 1.58" Hard-Chromed Shaft – Rust-resistant and self-cleaning with a mirror-polished finish for extended seal life
• Travel Options:
  • 2.5" Stroke – Extended: 12.875" | Collapsed: 10.375"
  • 4" Stroke – Extended: 14.75" | Collapsed: 10.75"
• Integrated Schrader Cap Mounts directly to the body—not the valve—for a stronger, cleaner seal
• Travel Gauge O-Ring on shaft for easy stroke reference
• Secure Indexing Pin prevents outer tube pinching during compression
• Delrin Contact Pad with flush-mount design eliminates metal-on-metal contact for quieter operation

MOUNTING SLEEVES:

• Threaded Design for added adjustability
• 360° Tube Retention – No pinch points like traditional cans
• Weld-Ready – Designed to allow for shrinkage during fabrication
• Outer Diameter (Can Only): 3.03"
• Outer Diameter (With Lock Rings): 3.22"

BUILT TO PERFORM

• Viton Seals
• 4130 Chromed & Polished Shafts
• Black Zinc-Coated Steel Shock Bodies
• 6061 Anodized Aluminum Components

WARRANTY

2-Year Warranty on non-wearable parts. Proper installation is required to maintain coverage.

NOTE

Intended for off-highway use only.
